Garage Door Sensor Component Failure: Diagnosis, Matched-Pair Replacement, and Beam Calibration
Moisture ingress, wiring faults, and impact damage confirmed and resolved the same visit — Bay View, Walker's Point, and Riverwest especially.
When the sensor itself has failed — circuit board, lens, housing, or wiring broken down past the point that bracket adjustment will fix — matched-pair replacement is the standard. Wiring continuity tested before any sensor is removed. Beam receiver sensitivity calibrated to your specific opening width before sign-off.
When the sensor itself has failed — not just shifted out of position
There's a meaningful difference between a sensor that needs repositioning and a sensor that needs replacing. The fix is completely different — confusing one for the other leads to return calls.
Bracket shifted, beam aimed wrong — that's an alignment issue. The component is intact and functional. But when the sensor housing has cracked from UV exposure, when moisture has reached the circuit board, when an impact has displaced the internal lens, or when the low-voltage wiring has developed an open circuit — that's component failure. Bracket adjustment won't resolve it.
Both problems produce overlapping symptoms: door reverses, refuses to close, indicator lights blink in error patterns. Which problem you're actually dealing with gets identified before anything is touched.
For positioning issues with intact components, see sensor alignment and safety inspection. When sensor faults point to a deeper opener-side issue, see opener repair and diagnostics.
Five Standards That Define a Sensor Repair Done Right
Wiring tested first. Housing inspected under direct light. Matched-pair replacement standard. Bracket position confirmed. Beam receiver sensitivity calibrated to your specific opening width — the step most often skipped on jobs that come back.
Wiring Continuity First
Low-voltage circuit from sensor bracket to logic board tested before any sensor is removed. Wire chafing against the door frame, staple compression, rodent damage inside the wall — all produce symptoms identical to a dead sensor. A wiring fault gets repaired, not worked around with a new sensor.
Housing Under Direct Light
Every sensor housing checked for hairline cracks, lens displacement, and terminal corrosion under direct light. Not just obvious visual condition. An impact-damaged sensor can show an undamaged bracket from three feet away — the lens has rotated inside the housing. Beam misses regardless of bracket position.
Matched-Pair Replacement
When environmental exposure or physical damage caused one sensor to fail, both units are replaced together. Standard practice, not an optional upgrade. Surviving sensor typically fails within four to eight weeks of the first — paired replacement closes that second-call gap in a single visit.
Receiver Calibration
Receiver detection threshold adjusted to confirm correct response at your garage's specific opening width. A 16-foot double-car opening requires different calibration than a 9-foot single-car door — infrared signal attenuates over distance. Required step. Frequently skipped on jobs that come back.
"The homeowner has been looking at the sensor for weeks. The actual problem is six feet up the wall."
Three failure types: wiring faults, impact damage, moisture deterioration. The one that generates the most unnecessary return calls is the one people least expect — wiring.
The first step on every sensor call is separating the sensor from the circuit. I disconnect the sensor leads and run a continuity test on the low-voltage wiring from the sensor bracket back to the opener's logic board. If there's an open circuit — a break caused by wire chafing, staple compression, or rodent damage — the sensor itself may be completely functional.
Replace the sensor without repairing the wire, and the new sensor shows the same fault within days. Brown Deer homes, Century City-area garages on the northwest side where aluminum-framed commercial-style openings chafe sensor wiring at the header bracket — same pattern.
If the wiring is clean, I move to the housing. Impact-damaged sensors get struck hard enough — vehicle door, foot, bicycle — to shift the internal lens off its position within the housing. Bracket may look undamaged from three feet away. Lens has rotated. Beam misses the receiver regardless.
The third type is environmental deterioration. Two sensors that have experienced identical Milwaukee winter moisture exposure across the same service window break down together. A sensor that reverses on cold mornings but works by noon — that pattern isn't random. It's the signature of internal moisture damage. Homeowners dismiss it for an entire season. By the time we get the call, the sensor has typically been masking active deterioration for months.
Replacing only the failed sensor leaves a second service call built into your system
A transmitter and receiver installed at the same time have experienced identical conditions: same garage, same moisture, same winter cycles, same UV load.
When one sensor fails from that shared exposure, the other is at the same point in its service life — it just hasn't crossed the threshold yet.
Replacing the failed unit and leaving the surviving sensor in place resets one half of a matched component pair. The surviving sensor reaches its own failure threshold in the same seasonal window — typically within four to eight weeks, based on patterns across Milwaukee's winter repair calls. Second service call, second labor charge, door fails again before spring.
Both sensors get replaced as a matched pair when failure is caused by environmental exposure or physical impact. The cost difference between replacing one sensor and replacing both is small. The difference in outcome is not.
This failure pattern appears most frequently in Milwaukee's older attached-garage neighborhoods: bungalow blocks along North Avenue in Harambee (53212), two-flats near Humboldt Park in Riverwest (53212), brick colonials in Washington Heights (53208). Garages built without floor drains. Winter meltwater has nowhere to go except toward the door frame — and the sensors mounted inches above it.
Diagnostics, Implementation, Six-Cycle Verification
Same diagnostic sequence every visit. Wiring continuity first, then housing inspection, then sensor replacement and beam calibration. Door must pass all six test cycles before sign-off — three with the beam clear and three with a 1.5-inch dowel in the path.
Diagnose the Cause
Opener disconnected from power. Wiring continuity checked from both brackets back to the logic board before touching the sensors. Housing inspected for cracks, lens displacement, terminal corrosion under focused light. Indicator lights read alongside the symptom pattern — morning-cold-then-working signals moisture infiltration.
Replace as a Pair
Sensors replaced as a matched pair if failure is environmental or impact-related. New sensors mounted to existing brackets if undamaged. Bracket replaced along with the sensor if it was struck and bent — common on the driver-side sensor in attached garages where the car door swings wide. Corroded copper cut back to fresh conductor before terminating.
Six-Cycle Verify

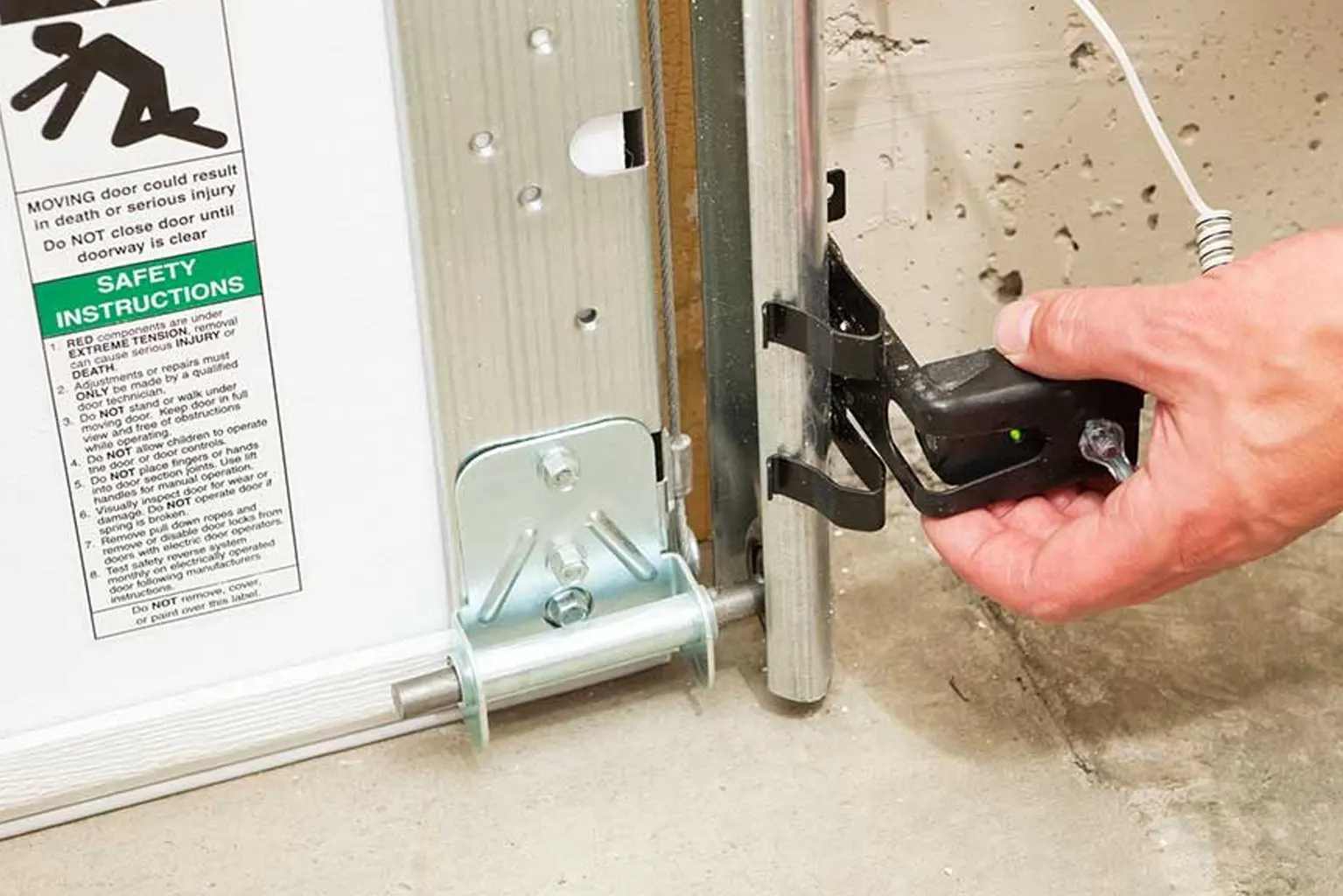

Beam receiver sensitivity calibrated for the specific opening width. Final test: door cycles three times with the beam path clear and three times with a 1.5-inch dowel placed in the beam path. Door must reverse on all three interrupted cycles. Job is cleared only when all six cycles pass.
Reversing in the cold morning, working by noon? That's a failing sensor showing its signature.
Don't dismiss it as a seasonal quirk. Same-visit diagnosis confirms whether the cause is wiring, housing damage, or moisture deterioration — and matched-pair replacement closes the second-call gap.
Three Component Failure Patterns Across Milwaukee's Older Garages
Wiring chafing on aluminum framing in newer construction. Impact damage from car-door swings in attached garages. Moisture-driven board failure in older neighborhoods without floor drains. Diagnostic sequence is the same; root cause differs.
Chafe at the Header
Brown Deer homes and Century City-area garages on the northwest side. Aluminum-framed commercial-style openings chafe sensor wiring at the header bracket. Symptom looks identical to a dead sensor — replace without repairing the wire and the new sensor shows the same fault within days. Continuity test catches it first.
Internal Lens Displaced
Driver-side sensor in attached garages where the car door swings wide. Vehicle door, foot, bicycle — struck hard enough to shift the internal lens off position within the housing. Bracket looks undamaged from three feet. Lens has rotated. Beam misses the receiver regardless of bracket adjustment.
Bay View, Riverwest, Walker's Point
Older attached garages in 53208, 53212, 53215 — built without floor drains. Winter meltwater wicks toward the door frame and the sensors mounted inches above it. Door reverses on cold mornings, works by noon. Matched-pair replacement closes the four-to-eight-week gap before the surviving sensor fails too.
Frequently Asked Questions
Most sensor repair visits finish in under 90 minutes. The wiring continuity check runs first, then housing inspection, then replacement and calibration. Beam receiver sensitivity calibration — adjusting the receiver’s detection threshold for your specific opening width — adds roughly 10 minutes but is required before the job is cleared.

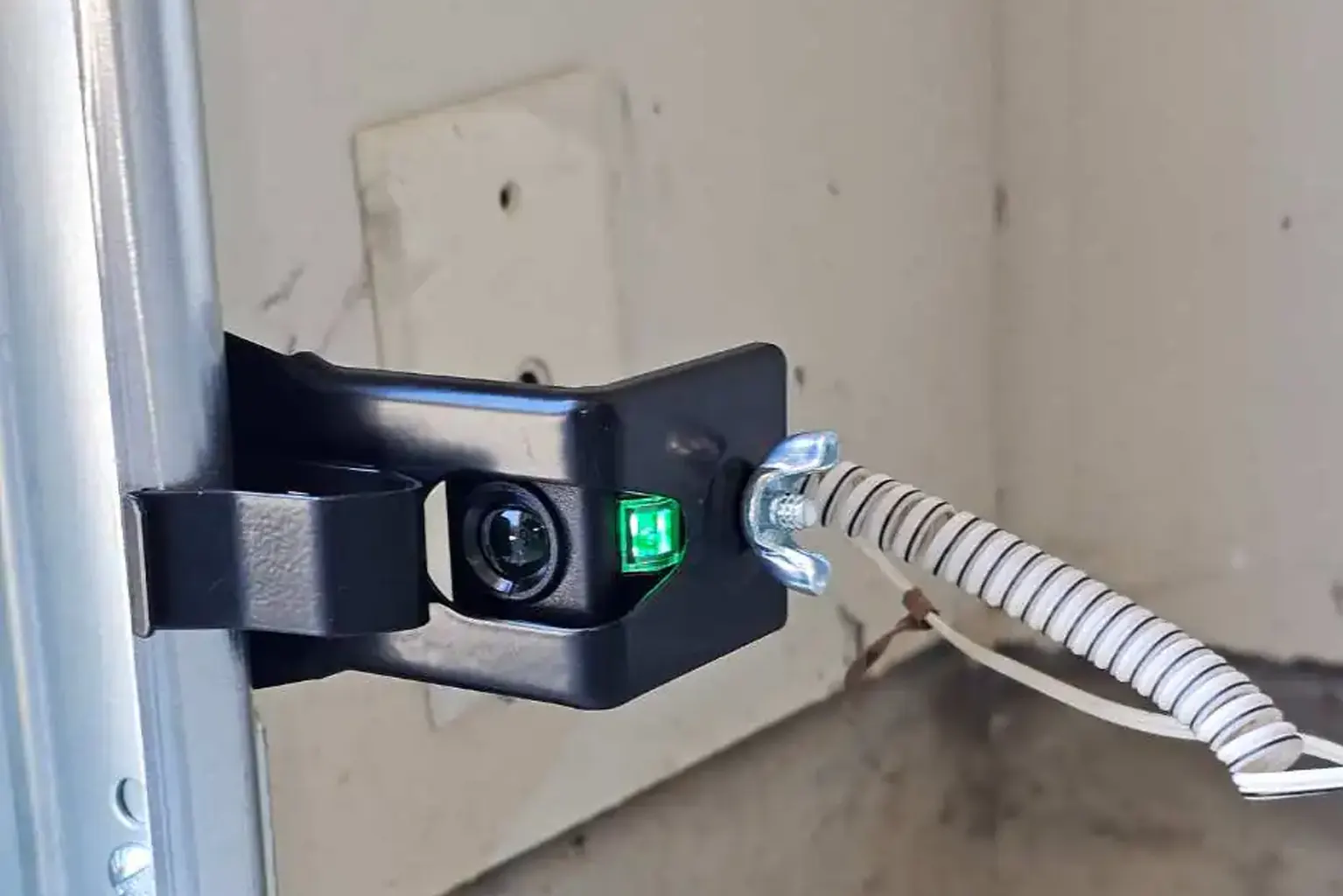

A green indicator light does not confirm a functioning sensor. Internal lens displacement from a minor impact can misalign the beam even when the light shows green. Beam continuity is checked with a direct test after visual inspection — not by reading the indicator alone. Indicator lights reflect power status, not beam accuracy.
Both sensors age together. A transmitter and receiver installed at the same time share identical moisture and cold exposure across the same Milwaukee winters. The surviving sensor typically fails within four to eight weeks of the first. Replacing only the failed unit means a second service call is built into your repair from day one. Paired replacement closes that gap in a single visit.
It changes everything. A wiring fault produces symptoms identical to a dead sensor, but replacing the sensor leaves the damaged wire in place. The new sensor fails the same way within days. The low-voltage circuit from bracket to logic board is tested before any sensor is removed. If the wire is the problem, that’s what gets repaired — not a sensor that was functioning correctly.
Yes. Milwaukee garages without floor drains collect meltwater near the door frame all winter. Once moisture reaches the circuit board, the sensor produces intermittent failures. Reversing in the cold morning, working by noon — that pattern worsens with each temperature cycle until the sensor stops responding entirely. In Bay View and Riverwest where older garages sit close to grade, moisture-driven board failure is one of the most common replacement patterns.
Most sensor replacements stop at mounting the new unit. Three steps not included in a standard swap: wiring continuity testing before any sensor is removed, matched-pair replacement when environmental exposure caused the failure, and beam receiver sensitivity calibration after installation. Door must pass six test cycles — three with the beam clear, three with a 1.5-inch dowel in the path — before the visit is cleared.
Sensor Component Replacement Across the Milwaukee Metro
Highest replacement call volume from Milwaukee's older residential neighborhoods in 53208, 53212, and 53215 — areas where garages were built without floor drains and winter meltwater accumulates at the door frame. Mon–Thu and Sun 7AM–9PM, Fri 7AM–4PM, 24/7 emergency.
Same-visit diagnosis and matched-pair replacement.
A failed sensor is a safety circuit problem — resolved correctly the first time. Beam continuity calibrated before the visit closes.
