Garage Door Safety Sensor Calibration & UL 325 Compliance Inspection
Same-day availability when a sensor fault is preventing your door from closing.
Three failure points produce the same symptom: a door that reverses unexpectedly or refuses to close. Lens angle, bracket position, wiring corrosion. All three tested before any adjustment — cleaning the lens addresses only one possibility. Live UL 325 auto-reverse test closes every visit.
Sensor calibration means testing three failure points — not just wiping the lens

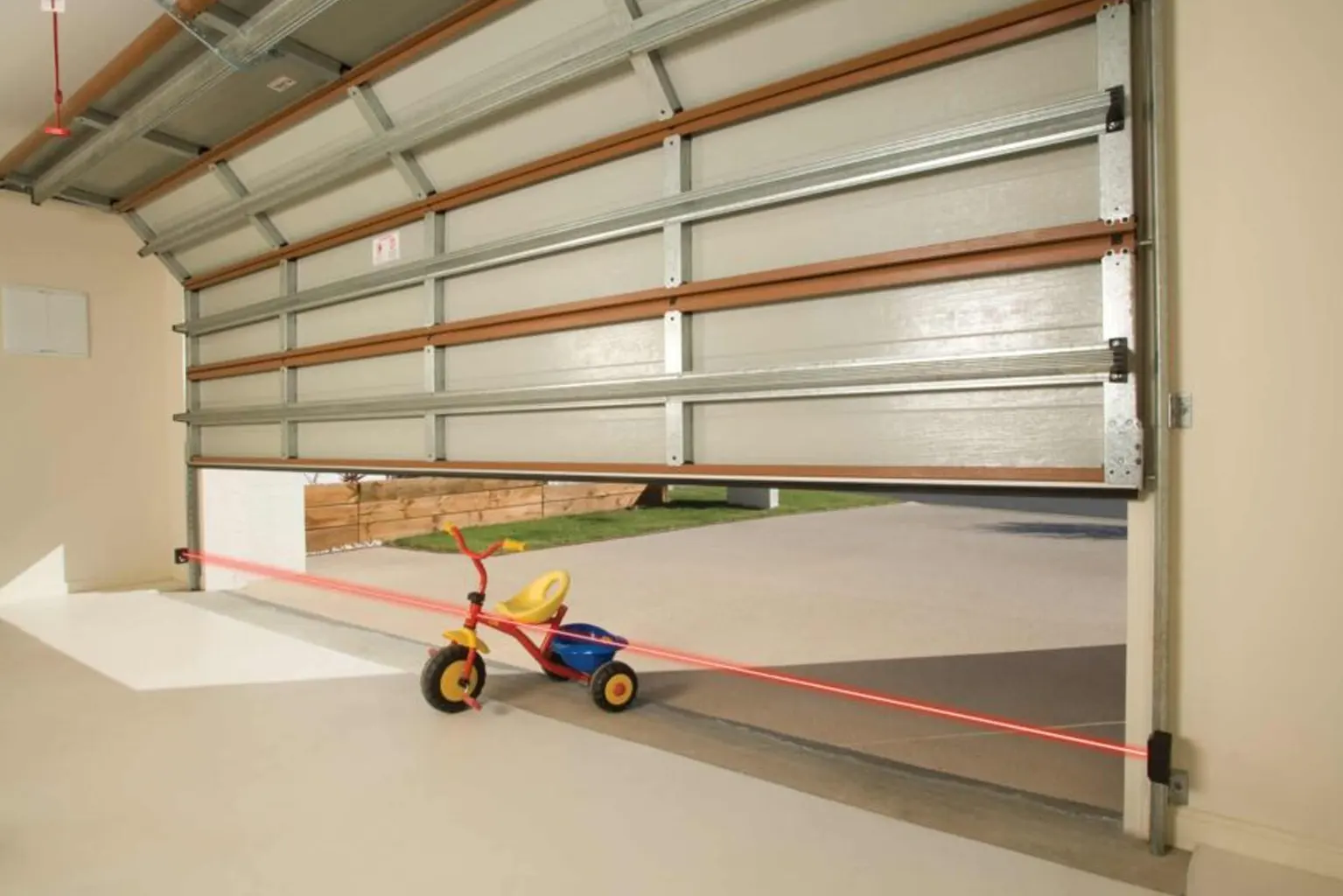

A photoelectric safety sensor does one job: transmitter sends an infrared beam, receiver detects it. If anything breaks the beam, the opener stops and reverses.
In practice, three separate failure points produce the same symptom: the lens angle can be off, the sensor bracket can be bent or cracked, the wiring connection at each sensor can corrode. All three look identical from "my door won't close."
Cleaning a lens or nudging an angle addresses only one possibility. If a corroded terminal is the actual cause, that fix changes nothing. All three tested before adjusting anything.
This page covers calibration on sensors that are physically intact but out of alignment, bracket-damaged, or wiring-corroded. For situations where the sensor unit itself has failed internally and requires matched-pair replacement, see sensor repair. When sensors pass but the door still reverses, that's an opener-side issue — see opener repair.
Four Checkpoints, Every Visit, Regardless of How the Symptom Presents
Beam continuity test, bracket position check, wiring terminal inspection, full UL 325 auto-reverse confirmation. Standard photoelectric sensor parts stocked on the vehicle for same-visit replacement.
Beam Continuity Test
Live infrared verification. Test object passed through the beam path at multiple heights while indicator response is observed. Confirms which failure is active — lens, bracket, or wiring — before any adjustment begins. Functional check, not a visual one.
Bracket Position
Mounting hardware inspected for bending, cracking, or looseness that allows vibration-driven shift. Bracket repositioning done with sensor height confirmed at four to six inches above the floor — the UL 325-specified range. Cracked brackets replaced same visit from vehicle stock.
Wiring Terminals
Low-voltage connections at each sensor housing checked for corrosion, oxidation, or intermittent contact. Corrosion produces intermittent faults — the light blinks some mornings but not others, worse in wet and cold. That intermittent pattern is more diagnostic than a steady fault.
UL 325 Auto-Reverse
Live verification that the door reverses when the beam is broken. Required on residential openers manufactured after January 1, 1993. Solid amber on the transmitter and solid green on the receiver confirmed at job close. Takes four minutes — standard on every visit.
"The indicator light status is the first thing we read — before touching a single bracket."
Each sensor has an indicator. Transmitter typically shows solid amber when functioning. Receiver shows solid green. That baseline is two steady lights, door closes normally.
Receiver blinking green: beam not reaching receiver — alignment, obstruction, or frost on the lens. Receiver light off: no power or wiring fault on that side. Transmitter light off: same on the other side. Both lights solid but the door still reverses: force sensitivity or limit setting issue — not a sensor problem at all.
Reading those lights first lets us triage the visit efficiently. Blinking or off lights on one side identify the fault location immediately. If both lights show solid but the door reverses, the diagnostic shifts to force sensitivity and limit settings on the opener — opener-side issue, not sensor-side.
Wiring connection corrosion tends to produce intermittent faults. The light blinks some mornings but not others. It worsens in wet, cold conditions and improves temporarily when everything dries out. That intermittent pattern is more diagnostic than a steady fault — tells me the failure is at a low-voltage terminal, not the lens.
Bracket repositioning is done with sensor height confirmed at four to six inches above the floor — the UL 325-specified range. Lens cleaning is done with a dry cloth, not compressed air, which can force moisture deeper into the housing. Sensor angle adjusted until the receiver light shows steady. Beam continuity tested after every adjustment.

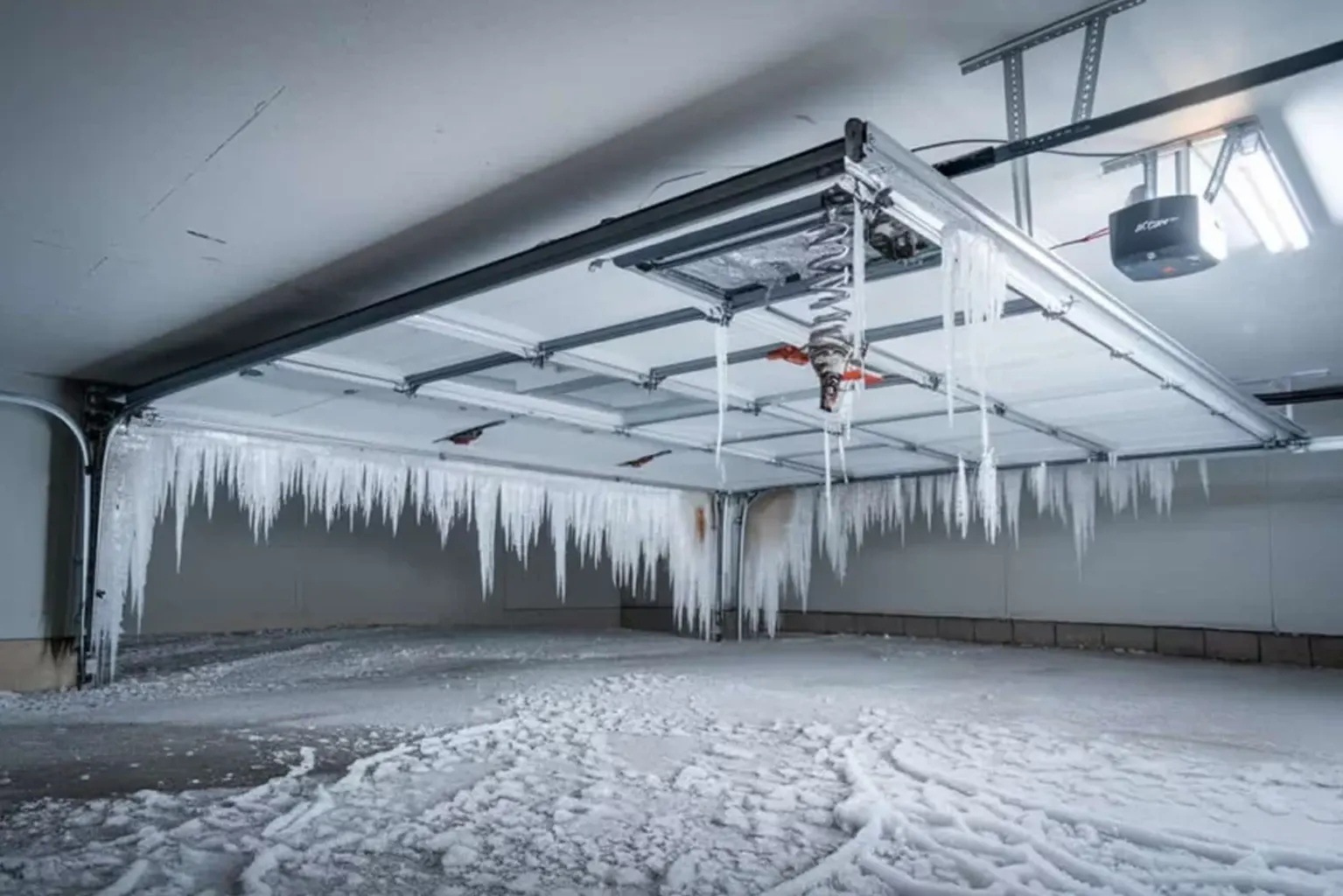

Frost on the sensor lens is a Milwaukee-specific failure pattern that repeats every cold morning
The infrared beam reads frost on the lens as a physical obstruction — the same signal it would send if a child walked under a closing door.
Cold air infiltrates under the garage door at night. The floor retains moisture from snowmelt tracked in during the day. That moisture contacts the sensor housing, which sits just four inches above the concrete. Overnight, it freezes.
The opener reverses. Or it won't start closing at all. The homeowner wipes the lens. The door closes. The next morning, same problem. Same root cause.
This frost-induced false reversal is distinct from a standard calibration problem. It doesn't respond to bracket adjustment. Which failure type is active gets identified before recommending any specific repair.
The communities along the I-894 corridor — West Allis, New Berlin, Greenfield — see this pattern from late November through early March. Attached garages in zip codes like 53214 and 53220 with uninsulated floors hold the cold longer. Menomonee Falls and Brown Deer jobs tend to come in mid-season; Waukesha and Oconomowoc calls often follow extended freezing rain events.
Read the Indicators, Make the Adjustment, Confirm Before Leaving
Same triage every visit. Indicator status read on arrival to identify the fault location. Adjustments and replacements follow the diagnosis. Beam continuity and auto-reverse tested after every adjustment.
Read the Indicators
Indicator light status read on arrival. Blinking or off lights on one side identify the fault location immediately. If both lights show solid but the door reverses, the diagnostic shifts to opener-side issues — force sensitivity, limit settings — not the sensor pair. Triage keeps the visit efficient.
Make the Adjustment
Adjustments follow the diagnosis. Bracket repositioning with sensor height confirmed at four to six inches above the floor — the UL 325-specified range. Wiring terminals cleaned or replaced depending on corrosion severity. Lens cleaned with a dry cloth, not compressed air. Angle adjusted until the receiver light shows steady.
Confirm Before Leaving
Beam continuity tested after every adjustment. Auto-reverse function tested with the door in motion. Solid amber on transmitter and solid green on receiver confirmed before the service record closes. Verbal summary delivered: what was found, what was adjusted or replaced, any other component showing wear.
Door reversing every cold morning? Same-day visit can confirm whether it's frost, bracket, or wiring.
Cleaning the lens addresses one possibility. We test all three before adjusting anything — same-day availability across the Milwaukee metro for sensor faults preventing a door from closing.
Three Sensor Fault Patterns We See Most Across Milwaukee
Same triage across all three. Different root causes — frost on the lens, bracket vibration, terminal corrosion. Indicator lights read first; adjustment follows the actual failure point.
Frost False Reversal
West Allis, New Berlin, Greenfield (53214, 53220) from late November through early March. Door reverses every cold morning, works fine by midday. Frost on the lens blocks the beam. Wiping clears it once — doesn't address the condensation cycle. Identified before bracket adjustment is attempted.
Cracked or Loose Mounts
Years of door cycling vibration eventually loosens or cracks the sensor bracket. Receiver light blinks consistently. Bracket repositioned with sensor height confirmed at the UL 325-specified four to six inches. Cracked brackets replaced same visit from vehicle stock.
Terminal Corrosion
Bay View bungalows, Riverwest colonials, Historic Third Ward conversions with 1990s sensor wiring. Intermittent faults — light blinks some mornings, not others. Worsens in wet and cold. Terminals cleaned or replaced depending on corrosion severity. Beam continuity verified after every adjustment.
Frequently Asked Questions
Most sensor calibration visits take 30 to 45 minutes from arrival to job close. Window covers beam continuity testing, bracket inspection, wiring check, lens cleaning, and the final UL 325 auto-reverse confirmation. Standard photoelectric sensor components stocked on the vehicle for same-visit replacement.
A solid green receiver light does not rule out a sensor fault. When both lights show solid but the door still reverses, the problem has shifted to force sensitivity or limit settings on the opener — not the sensor pair. Indicator status is read first and the diagnostic direction is adjusted before touching any hardware.
Three separate failure points produce identical reversal symptoms: lens angle, bracket position, and wiring corrosion. Adjusting the bracket angle only addresses one of them. A corroded wire terminal produces the same blinking-receiver symptom as a misaligned sensor — and a bracket adjustment changes nothing if wiring is the actual cause.
That pattern is a frost-induced false reversal. Ice forms overnight on the sensor lens, blocks the infrared beam, triggers the opener’s entrapment protection. Clears by midday when the frost melts. Wiping the lens works once but doesn’t address the condensation cycle causing it. Whether frost, bracket position, or wiring corrosion is driving the pattern is identified before recommending a fix.
Calibration addresses positioning, bracket integrity, wiring terminal condition, and UL 325 compliance on a system where both units are physically intact. Sensor repair covers situations where one or both photoelectric units have failed internally and the matched pair requires replacement. Which service applies is determined after reading the indicator status and running the beam continuity test on arrival.
Yes. A sensor that intermittently interrupts the closing cycle puts repeated stress on the opener’s logic board and motor as the system reverses under load. Especially when frost-driven and occurring daily through winter, this pattern accelerates wear on the opener’s drive system. Catching and correcting the fault early prevents that secondary wear from accumulating.
