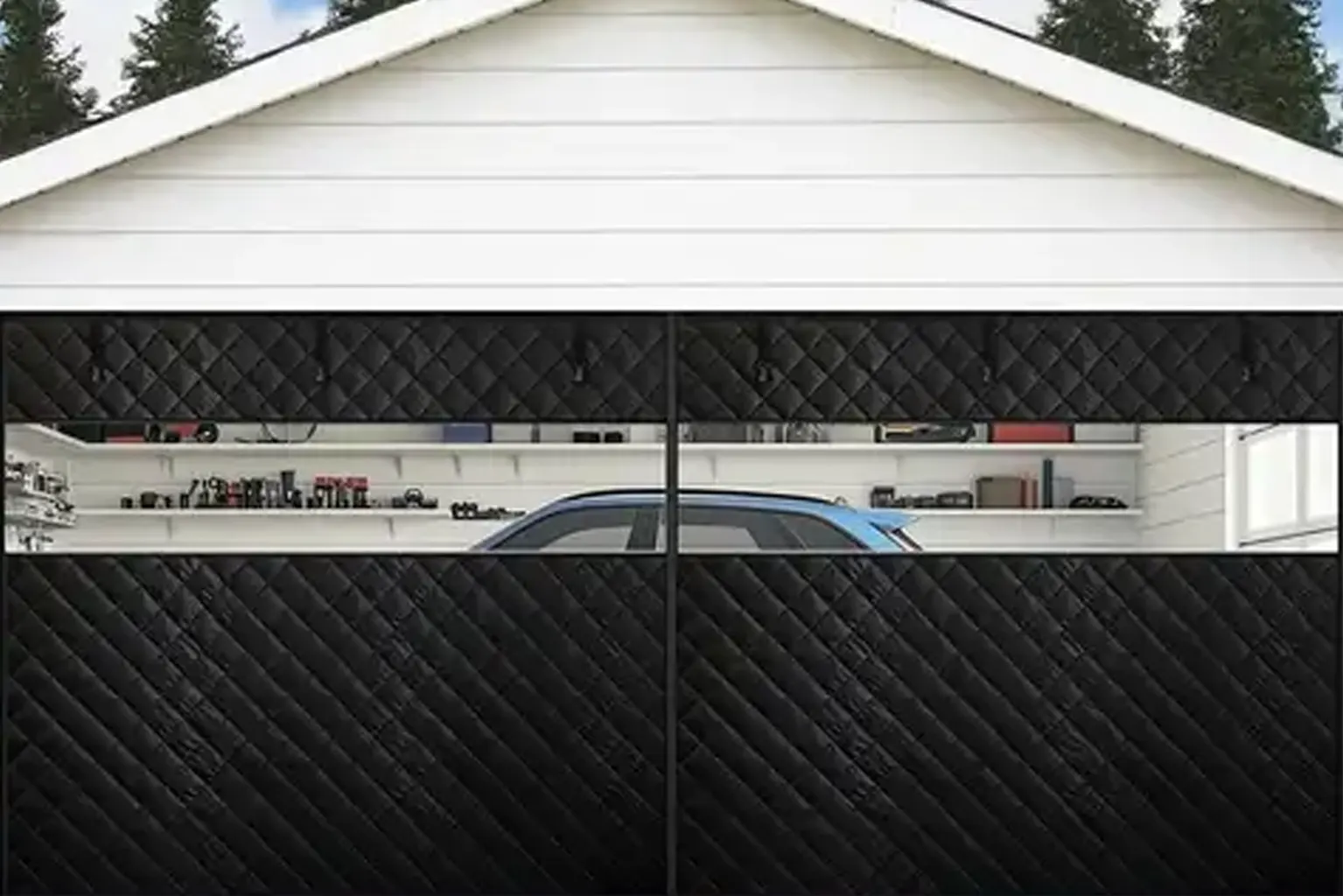

Insulated Double-Car Door Installed With Spring Weight Confirmed Before We Arrive
Serving attached two-car garages from Brookfield to New Berlin.
Thermally rated two-car doors matched to how your garage is actually used. R-value confirmed against attached vs. detached, spring system re-specified for the heavier panel weight, section joints checked for thermal breaks before install begins. No door ordered until you've seen the comparison in writing.
A 16-foot uninsulated door is the largest uncontrolled thermal surface in most SE Wisconsin homes
112 square feet of surface area facing whatever temperature is outside — more thermal damage than the wall next to it.
In an attached garage, that surface area matters two ways. The garage air temperature drops faster than in a detached structure because the door panel is the primary envelope. And the shared wall between the garage and the living space has to work harder to hold room temperature when the garage side is cold.
What most homeowners in New Berlin or Menomonee Falls don't realize: the shared wall is typically insulated to R-13 or R-19. The door it connects to may have zero insulation. A polyurethane-core door rated R-18 significantly slows that transfer — the difference registers in monthly heating costs and in how those adjacent rooms feel during a January cold snap.
For perimeter heat loss alongside the panel itself, see weather stripping to seal the door perimeter. For lighter-use or detached structures, non-insulated single-car options may be the right fit.
Four Standards That Hold on Every Insulated Double-Car Install
Each of these directly affects thermal performance through a Wisconsin winter. Each gets confirmed before any door is ordered — not after the panel arrives on the truck.
R-Value Matched to Use
Confirmed against garage usage type before the order is placed. A garage shared with living space gets a different recommendation than a detached utility structure. Polyurethane R-13 to R-18 vs. polystyrene R-6 to R-9 — comparison delivered in writing before you decide.
Spring System Re-Spec
Insulated double-car panels run 180 to 220 lbs — 60 to 90 lbs heavier than the non-insulated door coming out. Not a rounding error for a spring system. New tension calculated against verified door weight before the old hardware is touched.
Header Clearance
Insulated double-car sections run 1.75 to 2 inches thick — noticeably deeper than non-insulated steel. On mid-century Milwaukee construction, the header sometimes sits lower than the rough-in spec suggests. Measured on-site, not assumed from the catalog.
Thermal Break Joints
Bare steel-to-steel contact at section joints loses a measurable fraction of rated R-value at every joint line. Door model verified to use thermal break construction before signing off on each section. Insulation in the panel only matters if the joints don't bypass it.
"The installs I'm most satisfied with are the ones where someone calls back in February and says the hallway is warmer."
Most calls start the same way — heating bill crept up, an HVAC tech flagged the garage wall, or a spouse noticed the room next to the garage is always ten degrees colder than the rest of the house.
By the time I'm on-site, the homeowner has usually already accepted that the wall needs attention. The door hasn't entered the conversation yet.
First thing I do is measure the opening and pull up the existing door specs. On older non-insulated steel doors — common on 1990s and early 2000s construction in Waukesha County — that R-value is effectively zero. Sometimes it's a single-skin panel with no cavity at all.
From there, the conversation shifts to use. Is this garage conditioned? Does it share a wall with a bedroom, a finished room, or an attached mudroom? Those details change the recommendation. Detached storage gets polystyrene. Attached with shared walls and a workshop role gets polyurethane.
I also look at the spring system before I leave the site. An insulated double-car panel can weigh 180 to 220 pounds — the existing springs are sized for whatever door came out of the factory with the house. Those specs don't carry over. I calculate the new spring requirement against the actual door weight and order accordingly. That step gets skipped by a lot of installers. It shouldn't be.
Polyurethane vs. Polystyrene — the honest comparison
The right insulation type depends on how your garage connects to your home and your budget. Both options presented in writing before any door is ordered.
Polyurethane foam is injected into the panel and bonds directly to both steel skins. R-13 to R-18, higher rigidity, costs more upfront. That rigidity matters on a 16-foot opening cycling through Wisconsin temperature extremes.
Polystyrene is a rigid foam board inserted into the panel. R-6 to R-9, meaningful upgrade, cost-effective for semi-conditioned or detached garages. Performs well in the right application.
If your garage is attached and shares a wall with a living space, polyurethane is almost always the right call. If your garage is detached or only occasionally heated, polystyrene performs well and saves money on the install.
Insulation inside the panel addresses heat loss through the panel itself — gaps around the frame perimeter are a separate issue. Weather stripping seals the perimeter; panel insulation slows transfer through the door. Both matter. Both get reviewed during the pre-install assessment.
Sized to Opening, Sprung to Weight, Tested With the Actual Door in Place
Three differences from a standard door swap: panel depth, spring load, and thermal bridging at section joints. Each gets accounted for in the install sequence below.
Sizing & Spring Spec
Rough opening verified against new door section depth. Header clearance confirmed before installation begins. Spring tension calculated against verified door weight at this stage — new springs specified before the old hardware is touched. No carryover from the original factory install.
Section Install + Joint Check
Old door removed. New track set, leveled, confirmed for the deeper section profile. Sections installed bottom-up, each joint inspected for thermal break construction — bare steel-to-steel contact loses rated R-value at every joint line. Cables routed, springs tensioned to verified weight.
Load Test + Balance Verify
Five complete open-close cycles. Door released from six inches off the floor. A properly tensioned door holds position without drifting. If it drifts, tension is adjusted until it holds. Sensor alignment confirmed. Opener force settings reviewed against the new door weight before sign-off.
The room next to the garage is always ten degrees colder? The door is doing more thermal damage than the wall.
Send us your opening size and whether your garage is attached. We'll bring the polyurethane and polystyrene comparison and the spring spec for both options.
Three Garage Configurations — Three Different Recommendations
Same install standards across all three. Different foam type and R-value depending on how the garage connects to the rest of the home and how it gets used.
Attached + Shared Living Wall
Polyurethane R-13 to R-18. Garage shares a wall with bedroom, mudroom, finished basement stairwell, or above-room. Thermal mismatch between R-13 wall and zero-rated panel registers in monthly heating costs. Polyurethane closes the gap. Almost always the right call here.
Polystyrene R-6 to R-9
Detached structure, primarily car storage, occasional heat. Polystyrene is the cost-effective fit. Meaningful upgrade over zero-rated steel without paying for thermal performance the use case won't exercise. Same matched-pair spring re-spec, same thermal break joint check.
Polyurethane + Hardware Upgrade
Attached two-car doubling as a workshop, garage gym, or hobby space. Polyurethane R-18 plus heavier-gauge hinges and matched roller stems for the high cycle count. Section joint thermal breaks especially important — a workshop running heat loses it fastest at the joint lines.
Frequently Asked Questions
Polyurethane-core doors cost more upfront than polystyrene or non-insulated options. The price gap reflects the injected foam core, higher R-value, and added panel rigidity. For Milwaukee attached garages, the thermal performance difference is measurable in monthly heating costs. Call (414) 296-9783 for a written quote based on your opening size and insulation type.
Most insulated double-car installations complete in a single visit — old door removal, track setting, section-by-section install, spring tensioning, and post-install balance testing. Five open-close cycles run before the job clears. Plan for a half-day appointment. Exact timing depends on opening condition.
An insulated double-car door weighs significantly more than a non-insulated replacement. Springs calibrated for a 130-pound door cannot safely handle a 200-pound polyurethane panel. DiamondLift re-specs spring tension against actual door weight before the old hardware comes off. Reusing undersized springs on a heavier door shortens spring life and creates a balance failure risk.
Yes, and the gap is larger than most homeowners expect. Polyurethane delivers R-13 to R-18; polystyrene delivers R-6 to R-9. On a 112 sq ft double-car opening shared with living space, that difference registers in both heating load and room temperature stability. For detached or semi-conditioned structures, polystyrene performs well.
DiamondLift confirms your opening dimensions during the pre-installation assessment — you don’t need to measure anything yourself. Older Wisconsin homes often have minor variances in rough opening size. Width, height, and header clearance verified on-site before any door is ordered. Insulated panels run thicker, so header room is checked first.
Three steps separate this from a basic swap: R-value matched to actual garage usage, springs re-specified for the heavier panel, and sections checked for thermal breaks at the joints. A standard swap replaces the door without reviewing spring load or thermal bridging. Each of those gaps affects winter performance in an attached garage.
Insulated Double-Car Installs Across SE Wisconsin
Older neighborhoods (Bay View, Washington Heights, Wauwatosa) often have non-standard rough openings from mid-century construction. Western suburbs (Brookfield, New Berlin, Waukesha) skew toward newer attached two-car configurations. Menomonee Falls and Brown Deer split between the two.
R-value, spring spec, and opening dimensions confirmed before anything is ordered.
Tell us your opening size and whether your garage is attached. We'll bring the polyurethane and polystyrene comparison and the spring spec for both options.
