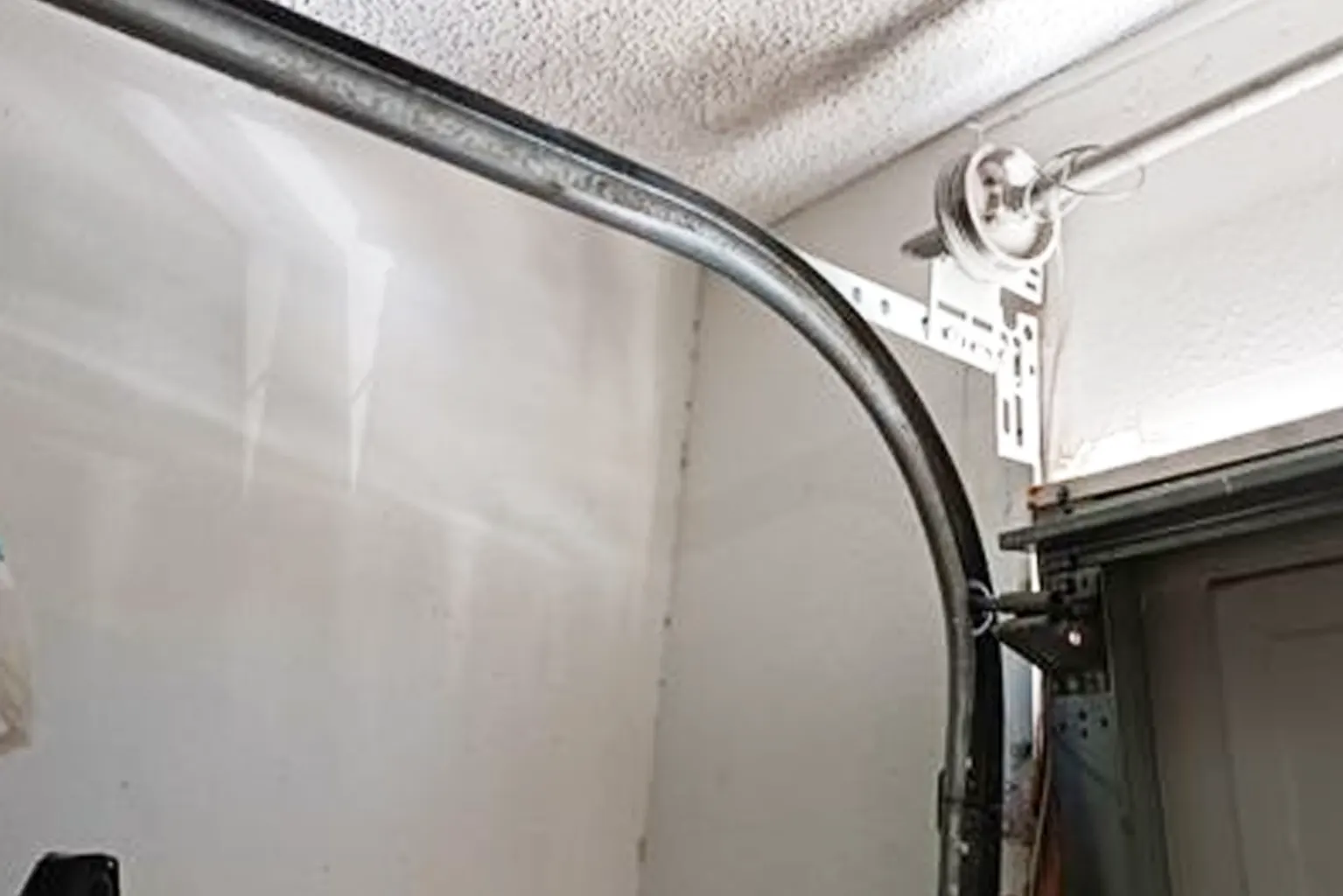

Bent, Crushed, or Fractured Track Channel: Reformation or Section Replacement Determined by Gauge Measurement
Cost difference between both options shown before any work begins.
Two possible outcomes: either the channel geometry can be restored to spec, or it can't. Gauge measurement at the damaged section makes the call — not a visual estimate. Reformation costs less than replacement. Both numbers quoted before any tool comes off the truck.
Steel that has been physically bent, crushed, or fractured — not just shifted out of position
Track channel repair addresses dented walls, fractured channel material, or sections so deformed that rollers grind or bind mid-travel.
Two possible outcomes: either the track channel geometry — the precise width and depth of the C-shaped channel the rollers travel through — can be restored to spec, or it can't. That fork determines the cost, the process, and the timeline.
Measure first, communicate both options, then fix it. Reformation costs less than replacement. Gauge tells you which one applies.
If your door has already jumped its track entirely, see off-track repair. If the geometry has shifted without impact damage to the steel, that falls under track alignment. Track repair is part of the full garage door repair service — additional issues addressed on the same visit.
Four Standards on Every Track Channel Repair
Channel measured before work. Mounting bracket position checked before and after. Both options quoted — reformation and replacement — with cost difference shown. Roller travel confirmed through the repaired section before sign-off.
Channel Gauge First
Gauge check on the deformed section determines reformation vs. replacement. Hairline fractures in track steel aren't visible to the eye from a distance. A section that looks like a minor dent may have a clean crack. A section that looks severely deformed may still reform cleanly. Measurement removes the guesswork.
Bracket Position Checked
Mounting bracket inspected for lateral shift before and after any track work. Vehicle impact often pushes the bracket off its original anchor position. Track work done on a shifted bracket reproduces the same problem in months. Bracket anchor points checked and re-torqued at the same time as channel work.
Both Options Quoted
Reformation and replacement costs presented before any work begins. Replacement isn't recommended when reformation will do the job. The homeowner sees both numbers and chooses with full information — not discovering the price mid-job. Gauge determines which option applies, not a visual guess.
Roller Travel Verified
Door cycled through full open-to-close travel after completion. Roller movement through the repaired section observed for hesitation, binding, or noise. If resistance remains, the gauge goes back on before the visit ends. Job not cleared until the door travels cleanly through a full cycle.
"The question isn't 'is it damaged?' It's 'has the channel wall fractured, or just deformed?'"
Menomonee Falls homeowner last winter. Door sticking at the bottom of its travel for about three months — every morning, every cycle, a brief hesitation before the rollers pushed through.
She assumed it was the opener losing power in the cold. When I pulled up and looked at the lower vertical section on the left side, the story was different. The channel wall had taken a hit — most likely a snow shovel or the corner of a storage bin during a tight winter unload. The dent itself wasn't dramatic. But the door had been forcing rollers through that section twice a day for most of a season.
Track reformation works well when the wall is bent but intact. The metal hasn't cracked. The mounting bracket hasn't shifted. The geometry can come back within spec. Faster, less expensive, same result as replacement. I don't recommend replacement when reformation will do the job.
But I've walked into garages where the track looked "just dented" from across the room and the channel wall had a clean fracture running through it. That section cannot be reformed. The steel has failed structurally. Forcing rollers through a fractured channel causes progressive damage to the roller stems and eventually to the bracket mounting points.
So the first thing I do is put a gauge on the channel opening. I measure the actual width at the damaged section and compare it to spec. If the deformation is within restorable range and the wall is intact, the reformation quote goes on the table. If the wall has fractured or the damage has spread beyond restorable tolerance, the replacement quote does. Both numbers, both options, before any work begins.
Measure first. Communicate second. Work third. In Menomonee Falls, the gauge cleared on reformation. The channel came back to spec in one visit, and the door has cycled cleanly ever since.
Milwaukee driveways make vertical track crush more common than most homeowners expect
Snowbanks narrow Milwaukee driveways by two feet or more, and vehicle-track contact follows. The damage often happens slowly across several winters — not in one dramatic incident.
A side mirror clips the track base in January. A recycling bin gets bumped into the opening in February. Each contact bends the channel wall a few millimeters more.
By the time a homeowner calls about grinding or sticking, the channel has usually been deforming for one or two seasons. The original impact point is visible. But damage progression has typically spread several inches beyond the first dent — rollers force through the deformed section on every cycle, expanding the damage further.
What starts as a small dent becomes a fractured channel wall if ignored. Reformation is possible on early-stage deformation; once the wall fractures, replacement is the only option and costs more.
Brookfield and Menomonee Falls sit in the middle of the regular dispatch zone — two of the most common sources of winter-related track damage calls. Service across Milwaukee, West Allis, Brown Deer, New Berlin, Waukesha, and Oconomowoc.
Assess, Repair, Confirm — Three Defined Stages
Channel measurement at the point of maximum deformation. Hairline fracture inspection. Bracket lateral shift check. Horizontal track sag check. Both options communicated before any tool is raised.
Assess
Channel geometry measured with a gauge at the point of maximum deformation. Surrounding wall inspected for hairline cracks running perpendicular to the channel length. Mounting bracket checked for lateral shift. Horizontal track sag checked — ceiling-mount deflection often appears alongside vertical crush. Findings communicated before any tools are raised.
Repair
If reformation applies, a track straightener restores the channel walls to original geometry. Work proceeds in small increments, with gauge checks between passes, until the channel opening is within spec. If replacement is required, the damaged section is removed and a matched replacement installed — bracket anchors checked and re-torqued at the same time.
Confirm
Door cycled through full open-to-close travel after all track work is complete. Roller movement through the repaired section observed for hesitation, binding, or noise. If any resistance remains, the gauge goes back on before the visit ends. Job not cleared until the door travels cleanly through a full cycle.
Track looks slightly bent but the door still moves? It's actively getting worse.
Every cycle forces the roller through the deformed section, expanding the damage. Reformation is possible on early-stage deformation. Once the wall fractures, replacement is the only option — and it costs more.
Three Track Damage Patterns Across Milwaukee Driveways
Same gauge measurement across all three. Different damage profiles — bent but intact, fractured wall, or horizontal sag from years of bracket loosening. Reformation or replacement determined by what the gauge reads.
Reformation Path
Channel wall bent but the steel hasn't cracked. Bracket position hasn't shifted. Geometry comes back to spec with a track straightener in small increments, gauge checks between passes. Faster, less expensive, same result as replacement. Most early-stage Milwaukee winter damage falls in this category.
Replacement Path
Hairline fractures running perpendicular to the channel length — not visible from across the room. Steel has failed structurally. Cannot be reformed. Damaged section removed and matched replacement installed. Forcing rollers through a fractured channel causes progressive damage to roller stems and bracket mounts.
Often Pairs With Crush
Ceiling-mounted horizontal track deflecting downward from bracket loosening or accumulated debris. A vehicle that clips the vertical track frequently contacts the transition zone too. Bracket hardware tightened and ceiling mount adjusted to restore the correct travel angle from vertical to horizontal.
Frequently Asked Questions
Most track channel repair visits take between 45 minutes and two hours. Reformation is faster than section replacement. Time also depends on whether brackets need re-anchoring or whether horizontal track sag is present alongside the vertical damage. The visit ends with a full open-to-close cycle test — the job isn’t cleared until the door travels cleanly.
Yes — a bent track that still allows movement is actively getting worse. Every door cycle forces the roller through the deformed channel section, expanding the damage further. What starts as a small dent becomes a fractured channel wall if ignored. Reformation is possible on early-stage deformation; once the wall fractures, replacement is the only option and costs more.
Gauge measurement checks the actual channel opening width at the damaged point. Visual inspection cannot tell you whether the channel wall has fractured or whether the deformation is within restorable range. Channel measured against spec before touching anything — that number determines reformation or replacement, two different costs and two different processes.
A properly reformed section is structurally equivalent to a replacement — provided the channel geometry is restored to within manufacturer tolerance. Confirmed with a post-reformation gauge check, not a visual pass. If the measurement doesn’t clear spec, reformation stops and replacement begins on the same visit. No “close enough” standard applied.
They address different problems. Track repair deals with steel that has been physically bent, crushed, or fractured — vehicle contact or a heavy object striking the wall. Track alignment addresses the angular and positional relationship between sections when the vertical-to-horizontal transition has shifted or brackets have drifted over time without direct impact. A door can need one, both, or neither.
Likely worse, but the gauge measurement will show exactly how far the damage has spread. Impact damage progression — the worsening of deformation from repeated roller contact — is the most common reason a small original dent becomes a long deformed section by the time a technician arrives. Early damage more likely qualifies for reformation. Delayed calls more likely require replacement.
Track Repair Across the Milwaukee Metro
Brookfield and Menomonee Falls sit in the middle of the regular dispatch zone — two of the most common sources of winter-related track damage calls. Mon–Thu and Sun 7AM–9PM, Fri 7AM–4PM, Saturday closed. 24/7 availability for urgent track damage that leaves your door compromised.
Gauge measurement, both options quoted, no work until you decide.
Tell us your city and what you're seeing — grinding, sticking, or visible damage to the channel wall. You'll know both options and both costs before any work begins.
