Worn Steel Roller Replacement for High-Cycle Attached Garages in Milwaukee
Serving attached-garage homes in Menomonee Falls, Brown Deer, and West Allis.
The grinding you hear isn't the track — it's the rollers fighting it. Bearing failure, seized housings, bent stems. Lubricant coats the surface; it doesn't fix what's broken. Single-roller and full-set quotes shown side by side before any work starts. Three full test cycles before sign-off.
High daily cycle counts — not age alone — determine when your rollers actually fail
Four to eight cycles a day is typical for a working household: morning departure, midday delivery, school pickup, evening return. 1,500 to 2,900 cycles per year.
Manufacturer ratings don't account for what Milwaukee's climate does specifically to steel roller bearings. Grease inside the bearing housing behaves differently at 5°F in January than at 85°F in July. When that grease stiffens in cold weather, the bearing drags slightly on every cold-start cycle.
Repeat that across five or six winters and the bearing balls wear unevenly. Summer humidity compounds the problem by introducing condensation into track debris — grit and oxidation that works into the bearing housing and accelerates wear from the inside out.
If grinding has started, see grinding noise diagnosis and repair first — rollers are confirmed as the source before any parts are replaced. For a quieter long-term option, see nylon roller upgrades.
Four Standards on Every Roller Replacement Visit
Bottom-roller priority. Stem condition checked before install. Track inspection included. Three full test cycles before the job is cleared — no shortcuts on a load-bearing component.
Bottom Roller Priority

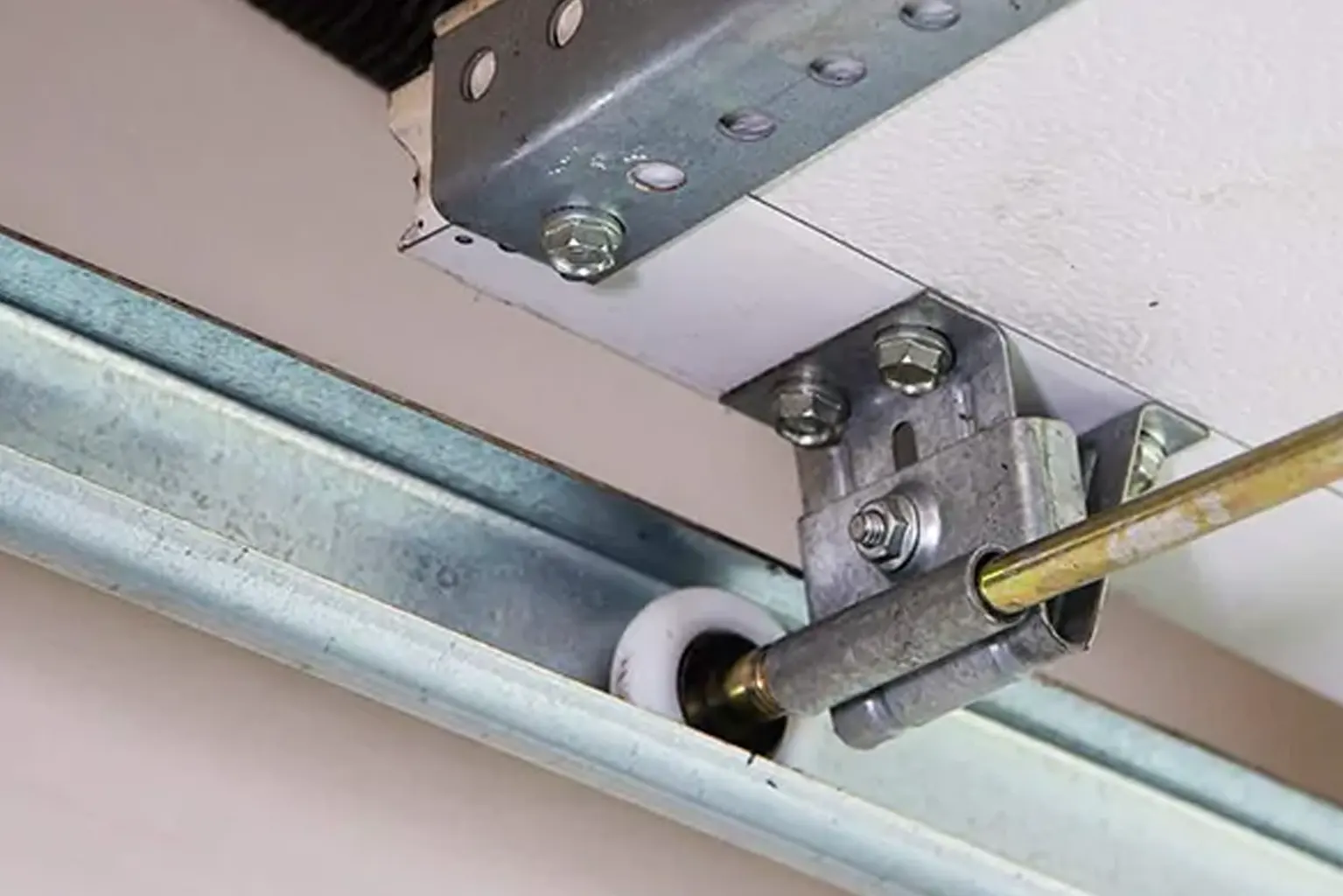

The bottom roller bears the full door weight at the moment travel begins. Most common single-point failure across Milwaukee residential calls. Checked first, replaced as part of any set. Mounted in the bottom fixture on each side — removal sequence is different from mid-door hinges.
Stem Condition Check
Every new roller's stem verified straight and properly seated in the hinge bracket before the door is cycled. A bent or corroded stem throws the roller off center in the track. Once that happens, it rubs the track wall on one side every cycle. Geometry problems can't be lubricated away.
Track Inspection Included
If a seized roller has been dragging, the track channel gets checked for groove wear. A roller that stops spinning and starts sliding wears a groove into the track wall over time. A damaged track section changes the repair scope — and you hear that before any work proceeds.
Three-Cycle Test
Door runs through at least three complete cycles after replacement — opener reconnected. Listening at each track section: vertical, curve, horizontal. Any residual noise gets traced to its source and resolved before sign-off. Lithium-based grease applied to bearing housing and stem — not penetrating oil, not aerosol spray.

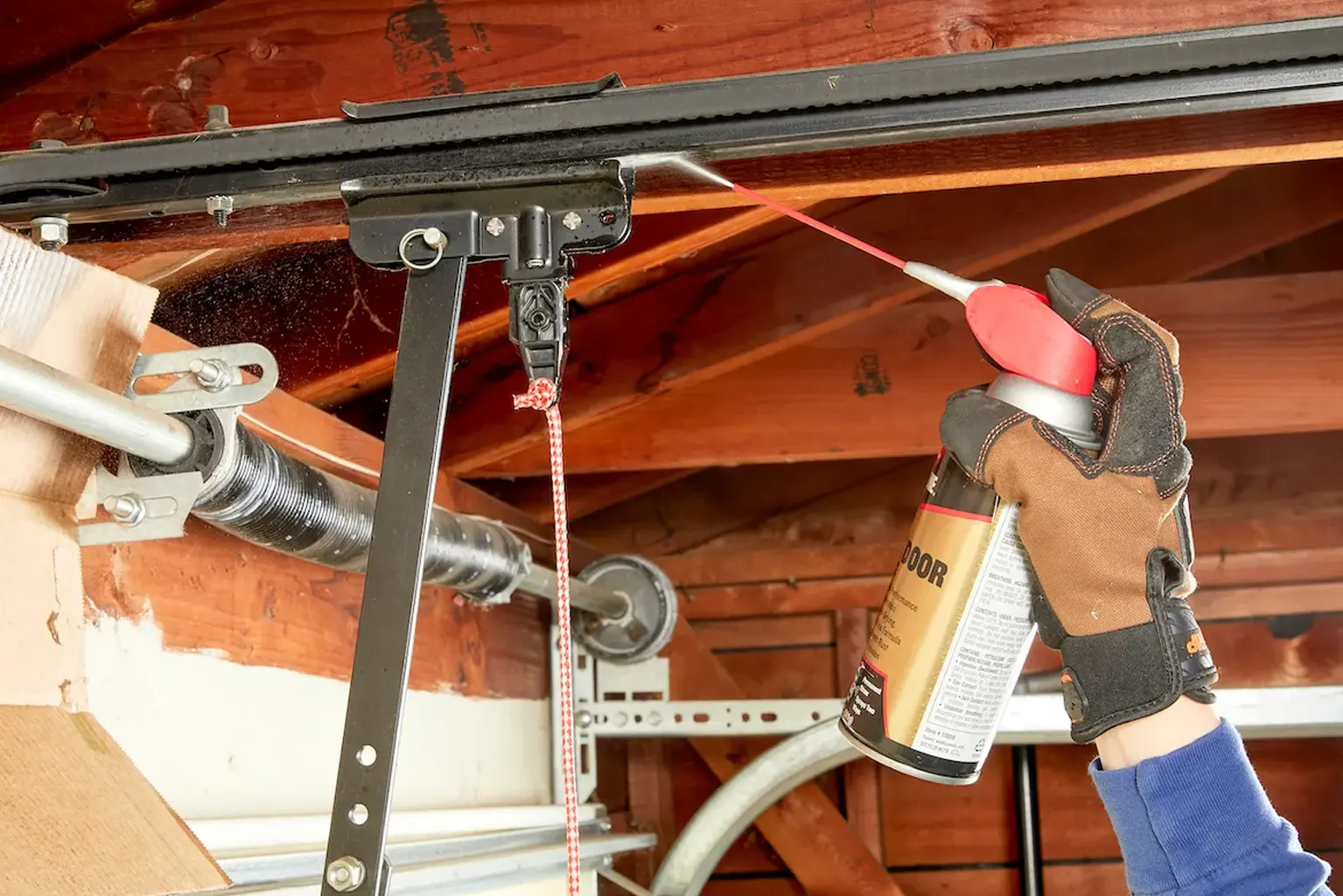

"Lubricant coats the surface of a roller that's already failing. It doesn't fix what's broken."
The pattern I see most often: homeowner hears a grinding noise on the way up, hits the rollers and track with spray lubricant. Noise drops off — until it comes back six weeks later, louder.

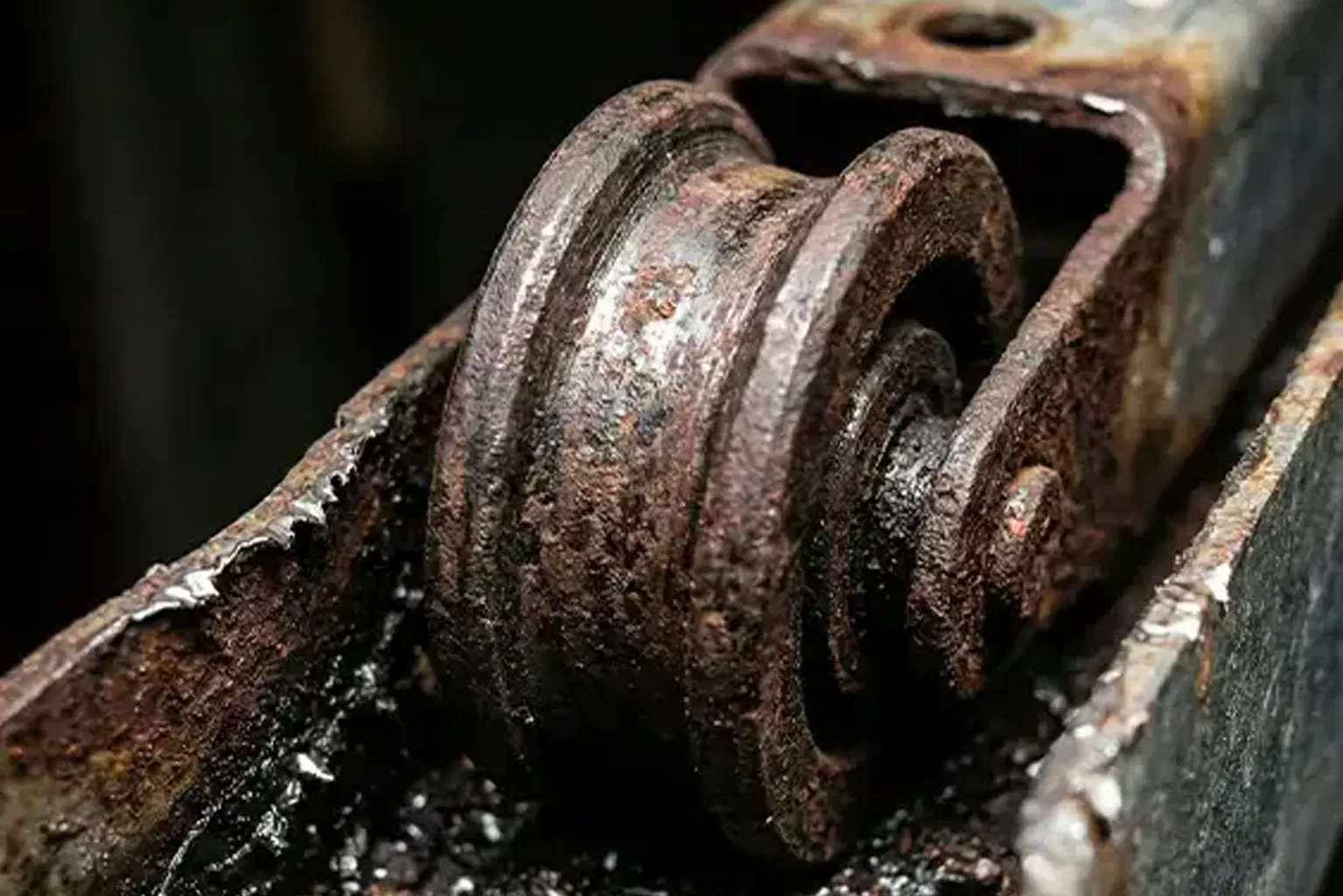

When I pull a roller off a door that's been cycling through that pattern for a year, I find one of two things. Bearing ball failure — the small steel balls inside the housing have worn down or fractured. The roller can't spin freely. It scrapes the inside wall of the track on every cycle instead of rolling along it.
Or a seized roller: the bearing housing has corroded to the point where the roller doesn't rotate at all. It slides. That sliding action grooves the track channel and forces the opener motor to pull harder than it was designed to.
What made the Brown Deer call last spring instructive wasn't the obvious failures — it was the hidden ones. Three rollers had failed bearings. Two were fully seized. The remaining seven looked intact on the surface. But they were the same age, the same installation date, exposed to the same track debris and temperature history.
I didn't find seven healthy rollers and five bad ones. I found a roller set that had aged as a unit, where five had crossed the failure threshold visibly and seven were close behind. That's why both quotes get shown side by side — single-roller and full-set, with the cost difference written out before touching anything.

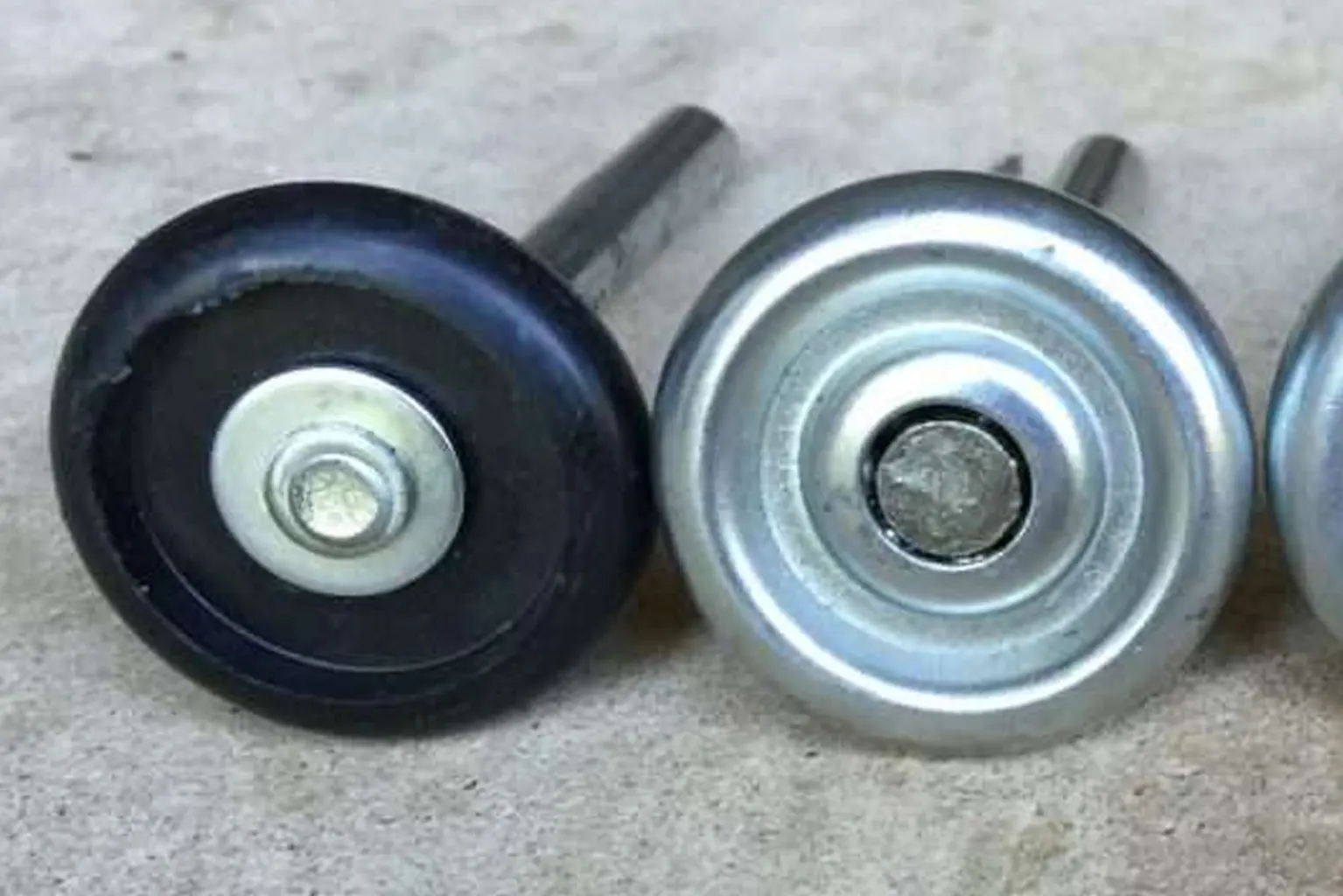

Single roller or full set — the cost difference is yours to see first
Some homeowners want to know whether they can replace just the one roller that visibly failed. Yes, that's an option. We do it.
But both quotes get shown — single roller and full set — with the cost difference written out before any work begins.
Rollers installed at the same time share the same track history, the same lubrication schedule, the same debris exposure. That's what roller set wear pattern means: the whole set ages together. When one roller fails visibly, the others are typically at the same stage. Replacing one while leaving seven others at that degradation level usually produces another service call within the same season.
The full set costs more upfront. The single roller costs less today. You see the number, you decide.
Some homeowners use a full replacement as the right moment to switch materials entirely. If noise reduction and lower long-term maintenance are priorities, a nylon roller upgrade can be quoted alongside the standard steel set replacement — same visit, same diagnostic, two different paths laid out side by side.
Manual Disconnect, Roller Swap, Three-Cycle Test
Same sequence every visit. Manual diagnostic isolates rollers from opener-motor issues. Removal follows the correct hinge-hardware sequence. Three-cycle test with the opener reconnected before any track section is cleared.
Manual Disconnect Diagnostic
Door runs manually first — opener disconnected. Manual travel isolates roller drag from opener-motor issues. Identifies which rollers have failed bearings, which are seized, which carry a bent stem, and where track wear has developed. Findings shown before any part is removed.
Removal & Install
Each roller removed using the correct hinge hardware sequence. Bottom fixtures require a different removal approach than mid-door hinges — skipping that sequence bends the stile. New rollers installed with the stem fully seated and the bearing housing clear of the track wall. Door hand-tested after each side is complete.
Three-Cycle Verify
Three full cycles with the opener reconnected. Listening at each track section — vertical, curve, horizontal. Any residual noise traced to its source and resolved before the technician leaves. If track-section groove damage shows from a previously seized roller, it gets documented with a now-or-later recommendation.
Hearing the grind? One visit, rollers replaced, door tested quiet.
Tell us what the door is doing. We'll handle the manual diagnostic, both quotes side by side, and the three-cycle test before sign-off — same-week scheduling for most Milwaukee metro addresses.
Three Roller Failure Patterns We See Across Milwaukee
Same diagnostic across all three. Different starting symptoms — bearing failure, seized housings, or a bent stem throwing the roller off center on every cycle.
Steel Balls Worn or Fractured
The roller can't spin freely. Scrapes the inside wall of the track on every cycle instead of rolling. Most common pattern on attached-garage doors hitting their first or second replacement cycle. Lubricant masks it for weeks — doesn't fix it. Set wear pattern usually means the rest are close behind.
Sliding, Not Rolling
Bearing housing corroded to the point where the roller doesn't rotate at all. Slides along the track wall, grooves the channel, forces the opener motor to pull harder than it was designed to. Track inspection included — groove damage documented before the work is closed.
Geometry, Not Friction
A bent or corroded roller stem throws the roller off center in the track. Once that happens, it rubs the track wall on one side every cycle. Lubrication doesn't fix a geometry problem. Stem condition is verified straight and properly seated before any new roller goes in.
Frequently Asked Questions
Replacing only the noisy roller is an option. However, rollers installed at the same time age together — a condition called roller set wear pattern. When one fails visibly, the others are typically at the same degradation stage. Both options are quoted side by side so you can compare costs and decide.
Most roller replacement visits take 45 to 90 minutes. That includes the manual disconnect diagnostic, removal and installation of the rollers, and three full test cycles with the opener reconnected. The door is confirmed quiet before the technician leaves.
A seized roller slides along the track wall instead of rolling. That friction grooves the track channel and forces the opener motor to pull harder on every cycle. Left unaddressed, it accelerates track wear and shortens opener life — both of which cost more to fix than the rollers themselves.
Steel replacement is the standard repair when bearings have failed, rollers are seized, or stems are bent — the door has a functional problem. Nylon is a material improvement: the door may be running adequately, but switching from steel reduces operating noise and resists the corrosion that makes steel bearings degrade in Milwaukee’s humid summers. Both can be quoted in the same visit.
Disconnecting the opener first isolates roller drag from motor issues. A door that strains under manual travel confirms the rollers are the source. A door that runs smoothly by hand points the diagnosis toward the opener instead. That one step prevents replacing parts that aren’t the actual problem.
It can. A roller that stops spinning and starts sliding wears a groove into the track channel wall over time. Whether that groove is deep enough to affect door travel — or narrow enough to ignore for now — depends on how long the roller was sliding before it was caught. The track channel is inspected during every roller replacement visit and findings are documented so a second repair isn’t a surprise.
Roller Replacement Across Milwaukee's Attached-Garage Neighborhoods
Bulk of roller work comes from high-cycle attached garages in Menomonee Falls, Brown Deer, and West Allis — homes built between the 1970s and 1990s hitting their first or second full roller replacement cycle. Same-week scheduling for most addresses.
One visit. Rollers replaced. Door tested quiet before we leave.
Tell us what the door is doing. Manual diagnostic, both quotes side by side, three-cycle test before sign-off.
