Matching Replacement Panel Sourced and Confirmed Before Your Install Is Scheduled
Series identification done before ordering — no wrong-panel surprises.
One structurally failed section replaced. The rest of your door system — track, springs, opener, surviving panels — preserved. Manufacturer stamping located, section heights measured individually, profile and color confirmed before any order is placed. Install scheduled only after the match is verified.
When the damage goes beyond repair: structural failure requires a section swap
A section bent beyond function, cracked through its full face, or crushed hard enough that it no longer sits correctly in the track cannot be restored with filler, adhesive, or surface correction. The section has to come out.
A section that's bent out of plane binds in the track on every cycle. A section cracked through loses its rigidity and puts stress on the hinge connections above and below it. These conditions don't improve with patching — they require a section swap.
The remaining sections stay. The track stays. The springs and opener stay. The goal is a door that looks and functions as a single unit after the work is done — and that outcome requires sourcing the right panel before the visit is scheduled.
For damage that stops short of structural failure — surface dents, shallow cosmetic creasing, localized corner dings — see panel repair. Not sure whether a section swap or a full new door makes more sense? Our panel vs. new door breakdown walks the breakpoints.
Four Standards That Hold Before Any Replacement Panel Is Ordered
Series identification, individually measured heights, color fade disclosure, structural integrity check on surviving sections. The install date isn't set until the match is verified.
Series ID Before Order
Manufacturer stamping located on the inside face of the top section. Series numbers embossed along the edge of mid-panels. Multiple data points feed identification — not just the label. If the series is current, replacement is straightforward. If discontinued, sourcing options documented before any order.

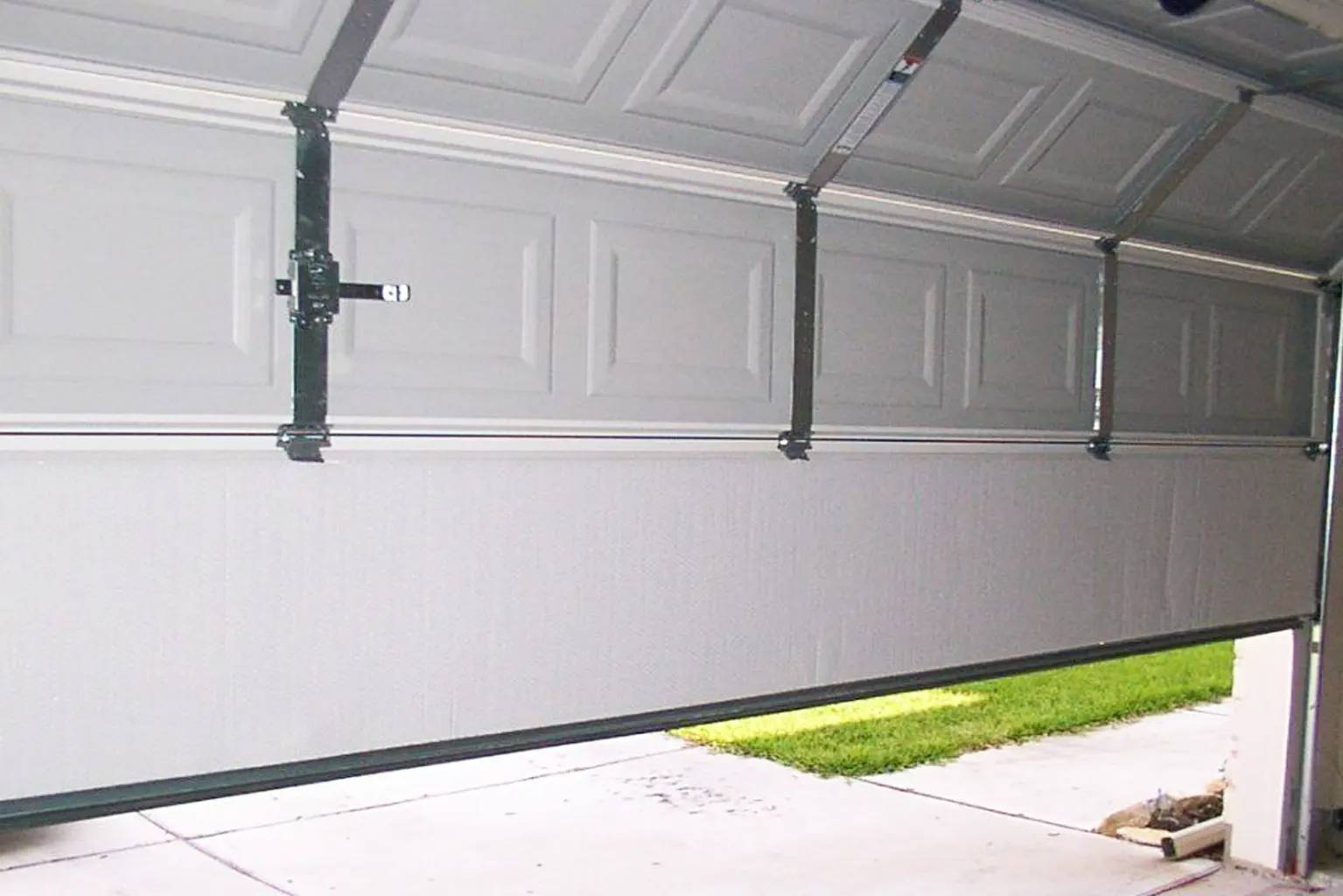

Heights Measured Individually
Not assumed from the door model alone. A panel even a quarter-inch off creates a visible gap or a binding problem at the top of travel. Modern replacement inventory runs at 18 or 21 inches — older Milwaukee doors often used 20 or 20.5 inches. Measured against the actual section, not the catalog spec.
Color Fade Disclosed
The new panel will read slightly brighter than sun-faded existing sections. Real on any Milwaukee door through several years of freeze-thaw cycling and UV. Not a defect — what happens to painted steel over time. Discussed with the homeowner before the panel ships, not after it's installed.
Structural Integrity Check
Hinges, roller stems, and section joints on the surviving panels confirmed serviceable before the job is cleared. Adjacent-section roller stems inspected during removal — the access point to catch worn stems before they become the next service call. Bottom weatherseal channel inspected before new seal goes in.
"The bottom section had been 20.5 inches tall. Modern replacement inventory runs at 18 or 21."
Menomonee Falls call. Snowplow clipped the bottom section after clearing the driveway apron. Folded inward in a shallow V, pulled off one roller stem on the left side.
Mid-1990s flush steel door, painted a muted almond color. No visible label anywhere on the exterior. Found the brand stamping pressed into the inside face of the top section — small, but readable. Series number embossed along the edge of one of the middle panels.
Measured the height of each surviving section individually. That's not a catalog-standard dimension. If I had assumed standard sizing and ordered without measuring, the new panel would have either sat short or forced a gap at the floor seal.
Sourced a 21-inch flush steel section in a comparable almond tone and called the homeowner before placing any order. I explained the new section would read slightly brighter than the existing panels — Menomonee Falls winters and a decade of UV had shifted the original toward a warmer beige. They wanted to know the difference upfront. Approved the order.
Color fade differential is real on any Milwaukee-area door that's been through several years of freeze-thaw cycling and sun exposure. Not a defect — what happens to painted steel over time. The homeowner hears that before the panel ships, not after it's installed. One section replaced. Track, springs, opener, hardware untouched.
Milwaukee homes built between 1940 and 1985 create a specific matching challenge
Bay View bungalows, West Allis ranches, Brookfield split-levels from the 1960s — built with garage doors that used product series long since discontinued.
When the bottom section of one of those doors gets hit or crushed under an ice sheet, the homeowner can't walk into a supply house and pull a match off the shelf. Door series identification is required before any replacement panel is ordered — without it, you're guessing on profile height, skin texture, and color.
The profile matters as much as the color. A panel even a quarter-inch taller than the original creates a visible gap or a binding problem at the top of travel. Panel height tolerance is tight. A mismatch shows.
Some Milwaukee-area doors from the 1970s and early 1980s used manufactured series that no longer exist in the supply chain. When an exact match isn't available, the homeowner gets a direct conversation: closest available panel with a visible differential, or a full door replacement if the gap is too wide to accept.
This matters most for doors in the 20-plus year range in neighborhoods like Riverwest, Sherman Park, or older sections of Brookfield. That conversation happens before the job is scheduled — not after the wrong panel arrives.
Diagnostics, Implementation, Verification — Match Confirmed Before the Install Date
Sourcing step adds lead time — typically a few days — before the install appointment is set. The install isn't scheduled until the correct panel is confirmed. You won't wait at home for a panel that turns out to be the wrong size.
Diagnostics & Series ID
Full look at the damaged section and the sections around it. Each surviving section's height measured individually. Manufacturer stamp or series embossing located — typically inside the top section or along the edge of a mid-panel. That data drives the sourcing decision.
Matched Install
Old section removed once the matched panel arrives confirmed. Roller stems on adjacent sections inspected during removal — the access point to catch worn stems before they become the next service call. New panel set into the track, hinges fastened, roller stems seated. Bottom weatherseal channel checked before new seal goes in.
Test & Balance
Door runs through a complete open-close cycle with the opener connected. Six-inch manual disconnect balance test — released at mid-travel, held at six inches, checked for drift. More than an inch of drift means spring tension needs adjustment. Sensor alignment verified, opener force confirmed within spec.
If an exact match isn't available, you hear that before anything is ordered.
Tell us your door's approximate age and the location of the damaged section. We'll identify the series, confirm sourcing, and schedule from there. Closest match or full replacement — the decision stays with you.
Three Replacement Scenarios We See Across Milwaukee
Same standard across all three. Different sourcing paths — modern catalog match, mid-1990s non-standard height, or pre-1985 discontinued series where the conversation about the gap happens before any order.
Modern Catalog Match
2000s and newer construction across Brookfield, New Berlin, Waukesha, Oconomowoc. Door series still in production, profile and color current in catalog. Match confirmed in days, not weeks. Section replaced and door tested — structural integrity check on surviving panels closes the visit.
Non-Standard Heights
Mid-1990s doors often use 20 or 20.5 inch panel heights — not catalog-standard 18 or 21. Measured on-site, sourced to the closest available match, color fade differential disclosed before the order ships. Track, springs, opener untouched.
Discontinued Series Conversation
Doors in the 20-plus year range from Riverwest, Sherman Park, older Brookfield sections. Series no longer in supply chain. Direct conversation about options: closest available with visible differential, or full door replacement if the gap is too wide. Decision before the job is scheduled.
Frequently Asked Questions
Panel replacement costs significantly less than full door replacement in most cases. Replacing one section preserves your existing track, springs, and opener — the most expensive components. Final cost depends on panel size, material, and sourcing availability for your door’s series. The panel match and pricing are confirmed before any order is placed.
Most panel replacements complete in a single visit once the matched section arrives. The sourcing step adds lead time — typically a few days — before the installation appointment is set. The install isn’t scheduled until the correct panel is confirmed. You won’t wait at home for a panel that turns out to be the wrong size.
You’re told about the mismatch before anything is ordered — not after the wrong panel arrives. Available options are explained: closest available panel with a visible color differential, or full door replacement if the gap is too large to accept. That decision stays with the homeowner. No surprises on installation day.
Color fade differential is common on doors older than five years. A new panel will appear slightly brighter than sun-faded existing sections. This is a chemistry issue, not a defect — UV exposure lightens the finish on older panels over time. The expected difference is explained before ordering so homeowners can decide with full information.
Replacing one panel changes the door’s weight distribution slightly. A full open-close cycle and a six-inch balance test run after every panel replacement. Opener force settings confirmed before the technician leaves. Structural integrity check on surviving sections also completed — hinges, roller stems, and section joints — to confirm everything remains serviceable.
Yes. Series identification relies on multiple data points — not just the label. Brand stampings inside the top section, embossed series numbers on mid-panels, and measured section heights all contribute. Milwaukee-area doors from the 1970s through 1990s are a regular part of the work.
Panel Replacement Across the Milwaukee Metro
Older inner-suburb homes — where door series matching takes extra sourcing lead time — are a regular part of the work. All replacement work completed in compliance with local regulations.
One damaged section, matched correctly, installed right.
Tell us your door's approximate age and the location of the damaged section. We'll identify the series, confirm sourcing, and schedule from there.
