Gate Opener Installation in Milwaukee, WI
Gate operator installed with winter alignment margin built in from day one.
Frost depth and seasonal post shift factored into every SE Wisconsin install. Obstacle detection sensitivity calibrated to cold-season resistance — not just summer tolerances. Access control pre-wire included so a future keypad or intercom doesn't require cutting into finished work.
This isn't just hanging a motor on a post.
It's measuring travel arc, selecting the right operator for gate weight and width, and calibrating obstacle detection to the actual resistance your gate produces at both ends of Milwaukee's temperature range.
What most property owners in SE Wisconsin don't realize: the calibration set on install day is not a permanent setting. Milwaukee's climate requires a seasonal approach from the start — or the system you test in October will bind in January.
SE Wisconsin's frost depth averages 36 to 48 inches depending on soil and winter severity. That single number shapes every installation decision: post depth, operator arm geometry, and obstacle detection sensitivity all tied to what happens when January ground movement shifts a post by half an inch.
Every installation includes access control interface wiring — conduit and pre-wire for a future keypad, remote receiver, or intercom. That step happens during installation, not as a costly add-on later.

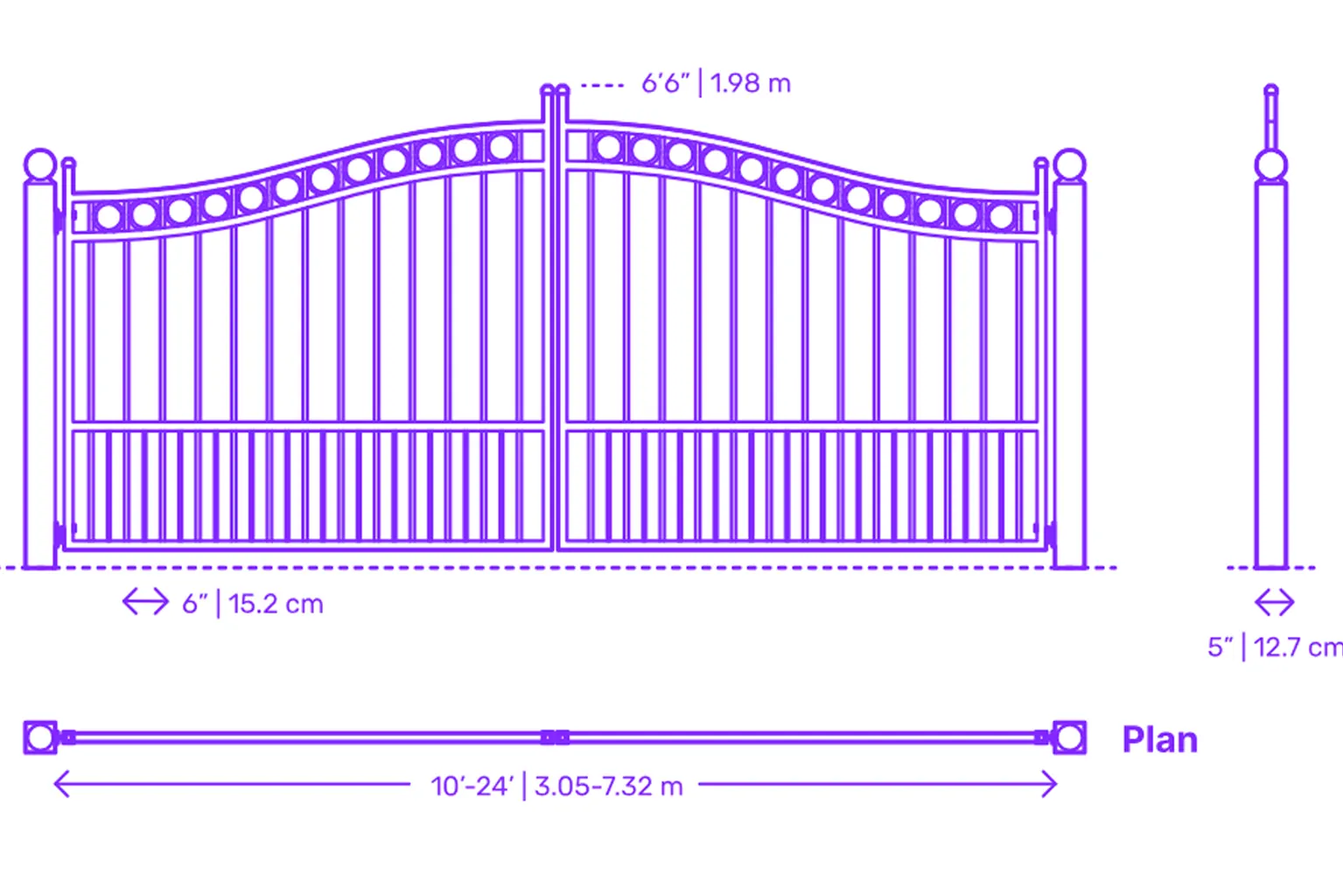

Gate Weight & Width
Operator selected based on actual gate weight and width — not a general size estimate. Twin-panel swing setups, single-panel gates, and slide configurations each carry different torque requirements. Measurement happens before any hardware is ordered.
Operator Type Match
Swing arm operators, underground linear actuators, or slide gate operators — selection responds to driveway geometry, gate weight, and clearance constraints. If a swinging gate doesn't have the room to clear, a slide system is the right choice.
Winter Alignment Margin
Arm travel limits set wider on the close-side than summer calibration would suggest. Obstacle detection sensitivity tuned against cold-season resistance — not the light resistance the gate offers on a 60°F install day. Built into every install. Not optional.
"Half an inch of post movement was enough to make the obstacle detection read normal travel as an obstruction."

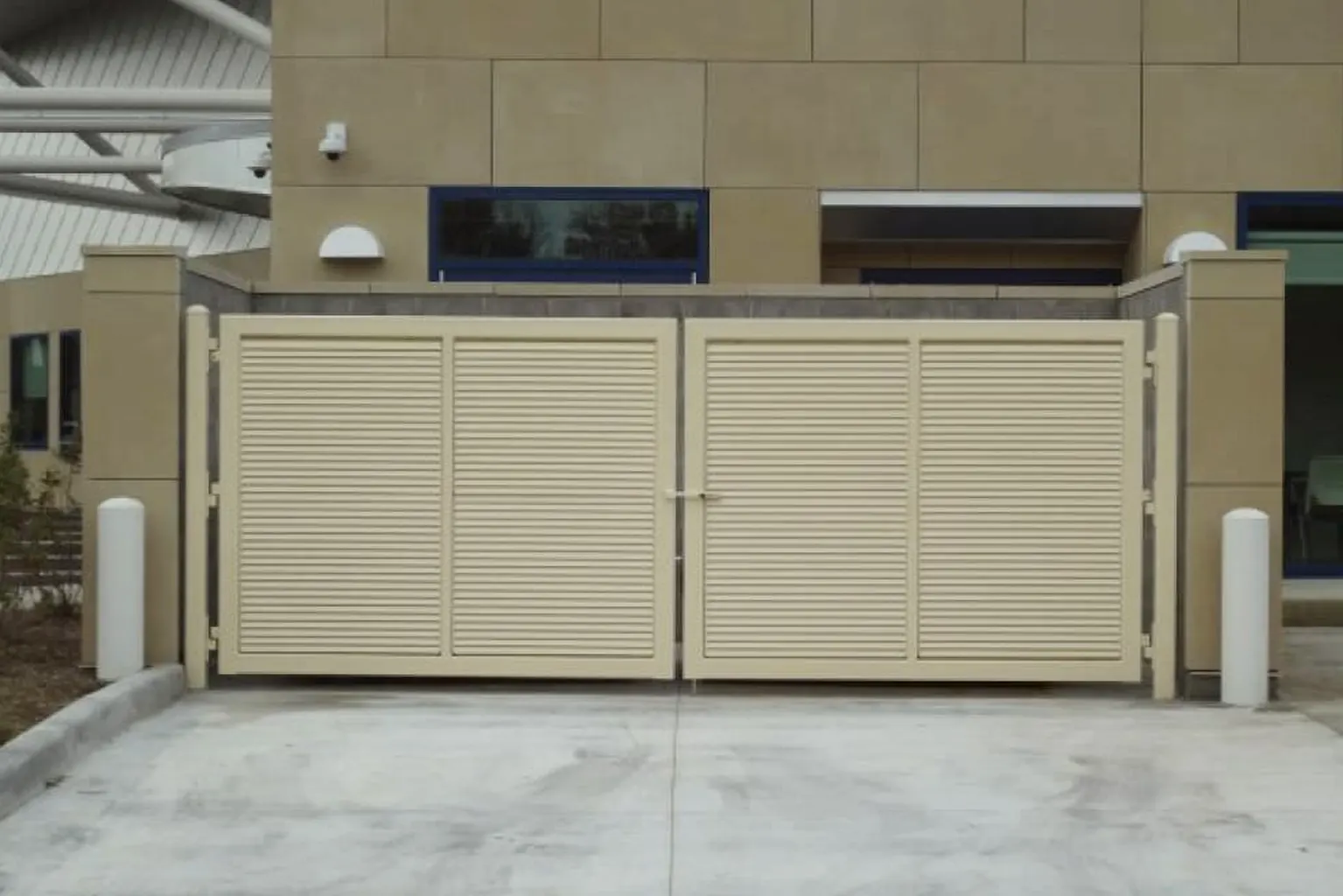

New Berlin property. Twin-panel swing gate on a stone pillar post. Worked perfectly from August through October. Started straining and reversing every morning in January.
Morning open cycle would run halfway, hit resistance, and reverse. By noon the same day, it worked fine. Following morning, same problem. Textbook seasonal post shift pattern. The pillar's concrete footing hadn't reached the 36-inch minimum depth I'd want for that soil type.
Frost was working on it from below. Morning temperatures below 15°F were tightening the travel arc enough that the obstacle detection — calibrated to summer resistance levels only — was reading normal gate travel as an obstruction.
The fix wasn't a new gate or a new operator. We reset obstacle detection sensitivity to account for cold-season resistance, adjusted the arm travel limit on the operator's cold end, and documented the new settings. That's why we changed how we install gate operators in SE Wisconsin. Every install now sets sensitivity to winter-weighted tolerances. Every arm travel adjustment builds in margin for small post movement Milwaukee's freeze-thaw cycle creates. We call it the winter alignment margin — not optional on any job we take.
Gate type determines operator type
Milwaukee properties have specific geometry and traffic conditions that narrow the choice. Driveway clearance and gate width make one configuration right and the other impractical.

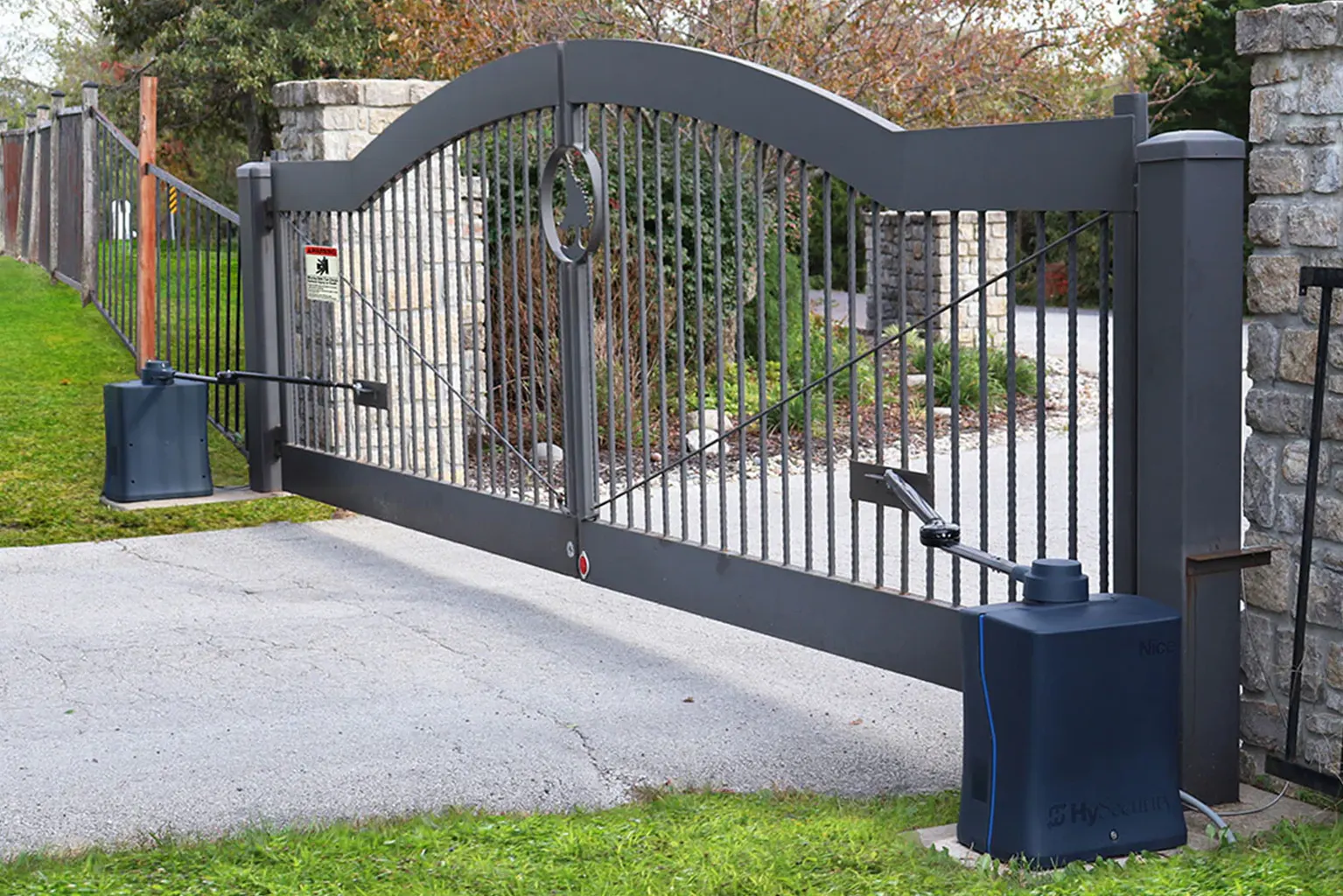

A swing gate operator — motorized arm pushing or pulling a hinged gate along its swing arc — is the most common residential setup in the Milwaukee suburbs. Above-ground arm-mount works for most posts.
Underground linear actuators install below grade at the hinge post and eliminate the above-ground arm entirely. They look cleaner, but they require deeper excavation, careful drainage planning, and a maintenance access point. In Milwaukee's clay-heavy soils near Lake Michigan — particularly ZIPs 53202 and 53207 — underground installs need drainage routing that an arm-mount doesn't.
Slide gate operators move the gate laterally along a ground track — the setup when a swinging gate can't clear the driveway, or when gate width makes a swing operator impractical. Common on commercial yard entries in West Allis and Menomonee Falls. Track must stay clear of debris, road salt, and ice buildup through Milwaukee's January and February brine seasons. Travel limits set with that maintenance reality in mind.
Site Assessment, Calibrated Install, Documented Settings
Gate measured, post inspected, operator selected. Mounting follows manufacturer geometry plus the SE Wisconsin winter margin adjustment. Final settings written down so the next technician understands the calibration baseline.
Site Assessment & Measurement
Gate weight and width confirmed. Driveway geometry measured. Existing post inspected for depth and condition — an arm calibrated correctly cannot compensate for a post set above frost depth. For commercial properties, electrical supply proximity and access control requirements confirmed.
Mount, Wire & Calibrate
Operator mounted to manufacturer arm geometry, then winter alignment margin applied for SE Wisconsin. Obstacle detection sensitivity set against cold-season resistance. Access control conduit run, wire pulled, interface pre-connected at the operator input terminal.
Test & Document
Minimum five complete open-close cycles. Obstacle detection verified at each travel limit. Remotes and keypad programmed. Final settings — arm limits, sensitivity, force — written down and given to the property owner. The calibration baseline for any future service visit.
Add the keypad now or later — the wiring is already there.
Access control pre-wire is included on every install — conduit and pulled wire to the operator's input terminal. Adding a keypad, remote receiver, or RFID reader years later doesn't mean cutting into finished work.
Three Operator Configurations We Install Most Often
Same install standards across all three. Same winter alignment margin. Same access control pre-wire. The configuration responds to gate geometry and driveway clearance — not preference.
Above-Ground Swing Arm
Most common residential setup in the Milwaukee suburbs — Brookfield, New Berlin, Waukesha, Oconomowoc. Above-ground arm-mount works for most posts with no excavation required beyond the operator base. Winter alignment margin built into every arm travel limit.
Underground Linear Actuator
Installed below grade at the hinge post — eliminates the above-ground arm entirely. Cleaner aesthetic. Requires deeper excavation, drainage routing, and a maintenance access point. In Milwaukee's clay-heavy soils near Lake Michigan, drainage planning isn't optional — it's the main install consideration.
Slide Gate Operator
Motorized drive moves the gate laterally along a ground track. The right choice when a swinging gate can't clear the driveway opening — common on commercial yard entries in West Allis and Menomonee Falls. Travel limits set with January and February brine-season debris in mind.
Frequently Asked Questions
Pricing depends on operator type, gate weight, and whether access control wiring is included. Swing arm operators for residential driveways typically cost less than slide gate systems used for commercial entries. Underground linear actuator installations add excavation and drainage work to the base cost. Written pricing after the site assessment — no quotes without measuring the gate and inspecting the post.
Most residential swing gate installations are completed in one visit. Slide gate systems or commercial entry setups with access control wiring take longer — typically a half day on-site. Timeline depends on post condition, electrical supply proximity, and whether access control rough-in is part of the scope.
A correctly installed gate still needs cold-season calibration because Milwaukee’s freeze-thaw cycle shifts gate posts. Even half an inch of post movement tightens the swing arc enough to trigger false obstacle detection. DiamondLift builds winter alignment margin into every installation — setting obstacle detection sensitivity to cold-season resistance, not summer tolerances only.
Yes — but it costs more to add access control wiring after installation than during it. DiamondLift pre-wires every gate opener installation with conduit and a pulled wire to the operator’s input terminal. That step is included in the standard installation. A future keypad or RFID reader connects without cutting into finished work.
Gate geometry determines operator type. A swing gate operator uses a motorized arm to push or pull a hinged gate along its swing arc. A slide gate operator moves the gate laterally along a ground track. If the driveway opening doesn’t give a swinging gate enough clearance to open fully, a slide system is the right choice. Confirmed during the site assessment.
No follow-up service is required when DiamondLift installs the operator — winter tolerance calibration is built into the original installation. Gates installed by others in summer or early fall with summer-only calibration may need a cold-season sensitivity reset before January. We can assess an existing operator’s calibration on a service call.
Gate Opener Installs Across the Milwaukee Metro
Heaviest install demand in Oconomowoc, Waukesha, and New Berlin — larger residential lots and commercial perimeter access points. City installs across Bay View (53207), Riverwest (53212), Walker's Point (53204), Historic Third Ward (53202), and the northwest corridor (53218).
Calibrated for Wisconsin winters from day one.
Same-week scheduling typically available across the full service area. Tell us your gate type and driveway geometry — we'll arrive with the right operator and pre-wire ready to go.
